Removing Upper Part Of Rear Lid Lock

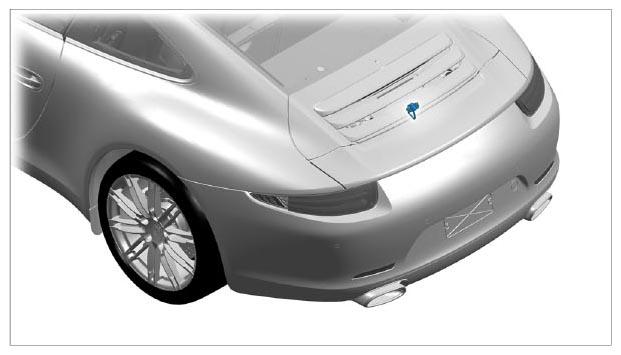

Fig 1: Identifying Upper Part Of Rear Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Mark installation position of upper part of lid lock with respect to the lid.

1. Open the rear lid.

   Information

   Fastening screws must be replaced following removal.

2. Unscrew fastening screws -1-  and remove upper part of lid lock -2-  .

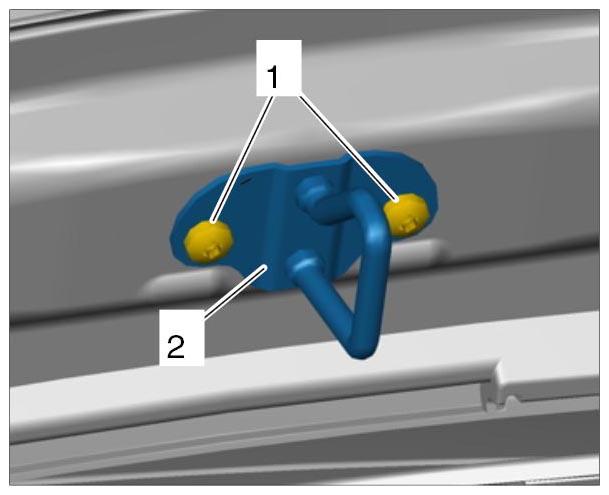

Fig 2: Identifying Rear Lid Upper Part Lock Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
