Installing Upper Part Of Rear Lid Lock

Installation is performed in reverse order to removal.

Position upper part of lid lock on the two round indentations in the inner panel of the lid and secure it -arrow-

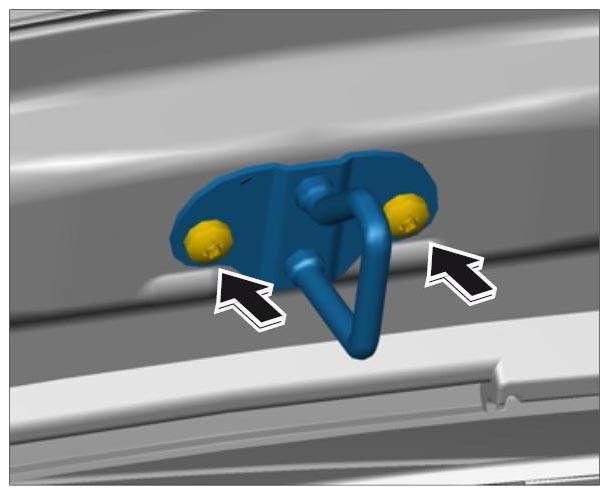

Fig 1: Installing Rear Lid Lock Upper Part
G09993996Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Location Description Type Basic Value Tolerance 1 Tolerance 2
Fastening Screws On Upper Part Of Lid Lock   Tightening Torque 9.7 Nm (7.2 ft. lbs.)
