Removing Lower Part Of Rear Lid Lock (Lock)

Fig 1: Identifying Lower Part Of Rear Lid Lock (Lock)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove lower part of lid lock (lock) from lower part of lid lock cover (cover).
   • 1.1. Unscrew fastening screws -1-  .
   • 1.2. Pull off connector -2 -  .

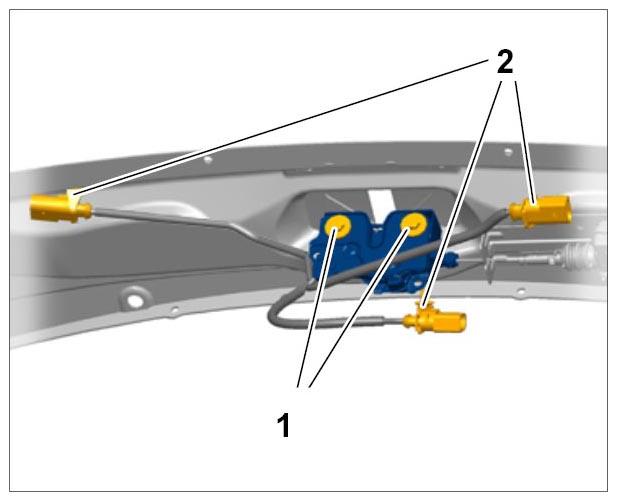

   Fig 2: Identifying Rear Lid Lock Screws And Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press the clips on the bowden cable together -arrow-  and slide the emergency release cable down from the lower part of the lid lock and disengage it.

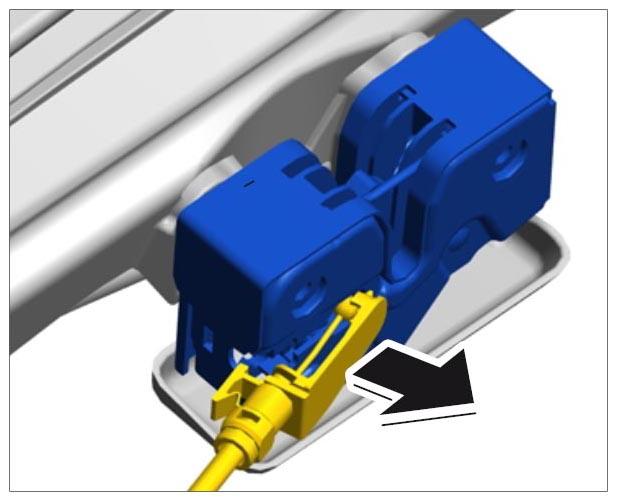

   Fig 3: Disconnecting Emergency Release Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unclip locking lug on electric lid release -A-  and disengage it by pulling it up -arrow-  out of the guide.

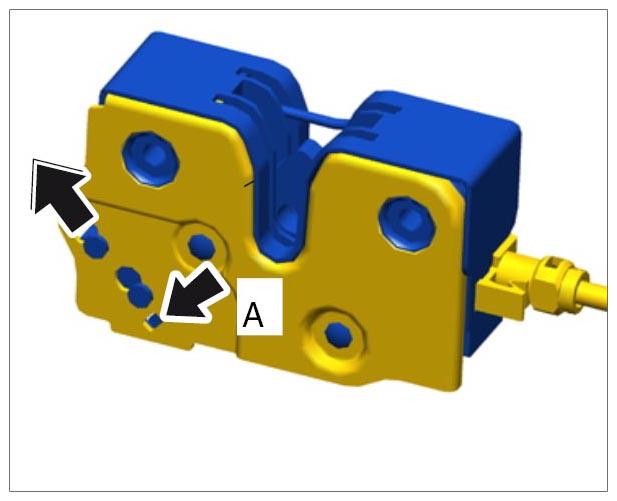

Fig 4: Removing Lid Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
