Removing Lower Part Of Rear Lid Lock

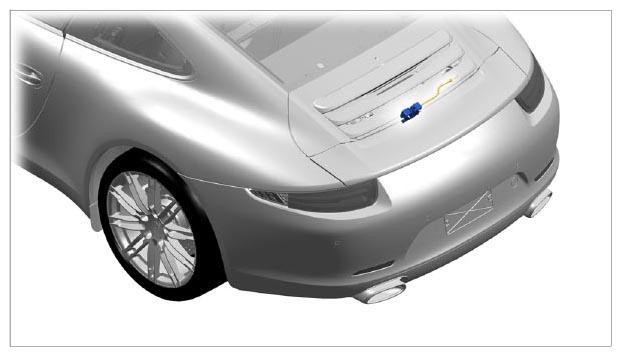

Fig 1: Identifying Lower Part Of Rear Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening screws -1-  from lower part of rear lid lock -2-  .

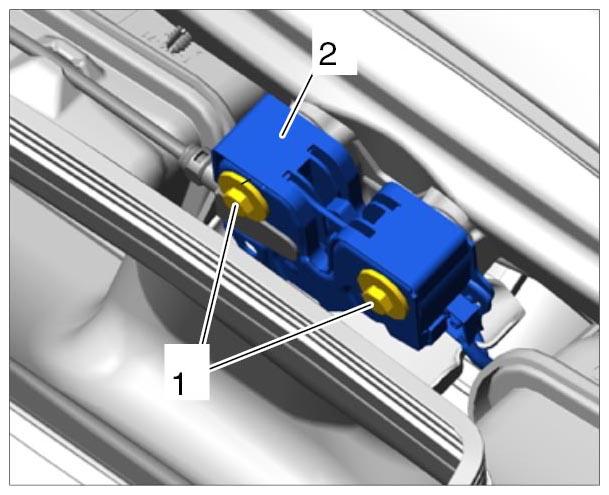

Fig 2: Identifying Lower Part Of Rear Lid Lock Part Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
