Removing Lower Part Of Rear Lid Lock

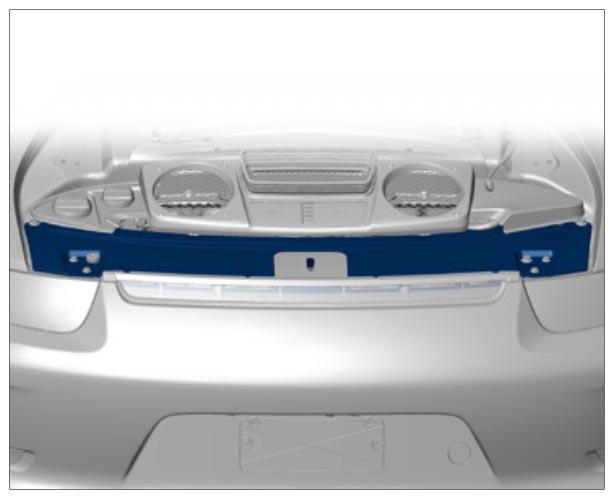

Fig 1: Identifying Lower Part Of Rear Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unclip inner right cover and remove it by pulling it upwards -arrow-  .

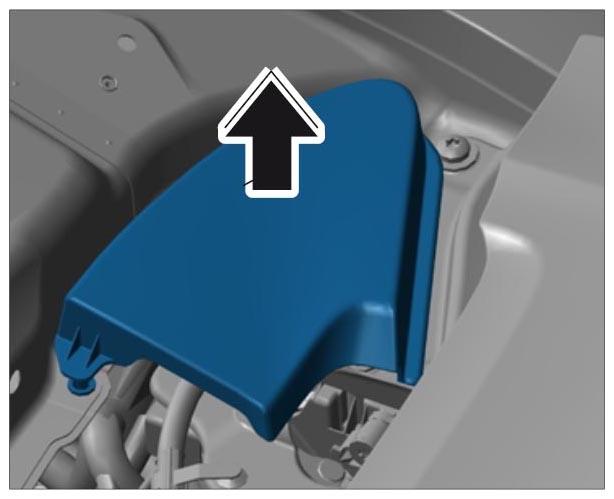

   Fig 2: Removing Rear Lid Lock Inner Right Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen upper part of oil filler neck.
   • 2.1. Unscrew and remove fastening screw on upper part of oil filler neck -arrow-  .
   • 2.2. Remove coolant cap and set upper part aside.
   • 2.3. Protect coolant filler neck to prevent dirt and parts from falling in.

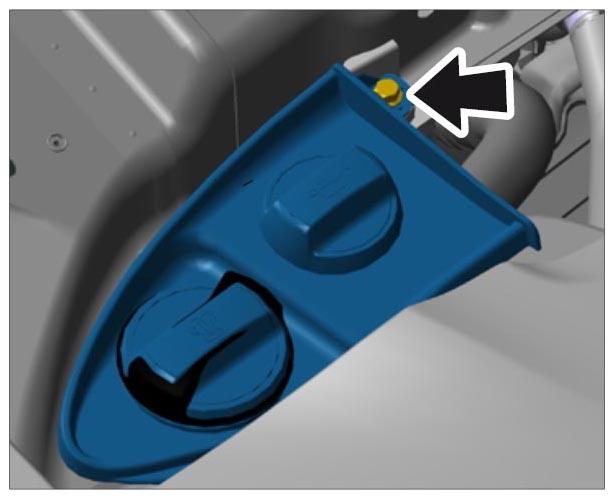

   Fig 3: Locating Upper Part Of Oil Filler Neck Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew and remove fastening screws -1-  for rear apron.

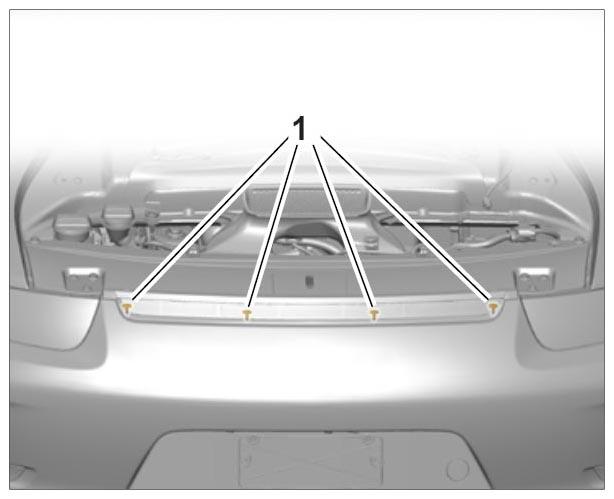

   Fig 4: Identifying Rear Apron Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove cover caps and unscrew and remove fastening screws -1-  on cover for lower part of lock at the left and right.

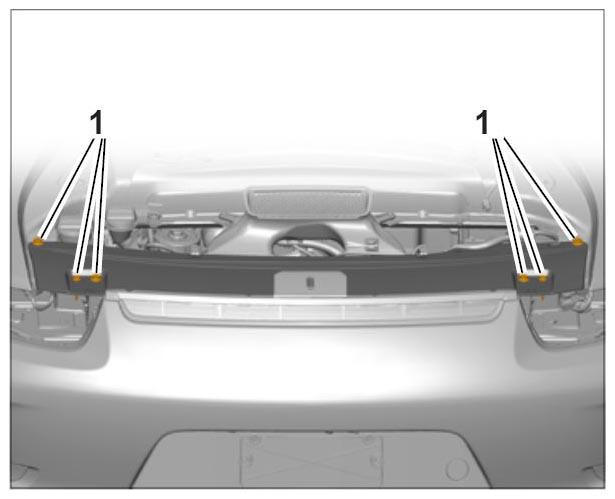

   Fig 5: Identifying Lock Lower Part Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release and disconnect electric plug connection -1-  at the right.

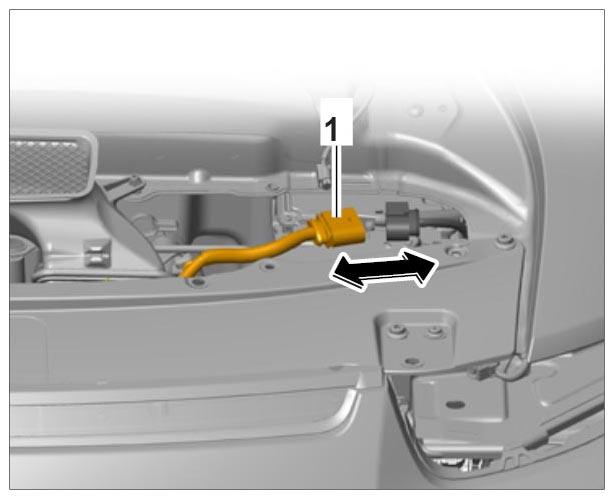

   Fig 6: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Swivel cover for lower part of lid lock out of the guide for the rear apron and remove it by pulling it upwards.
