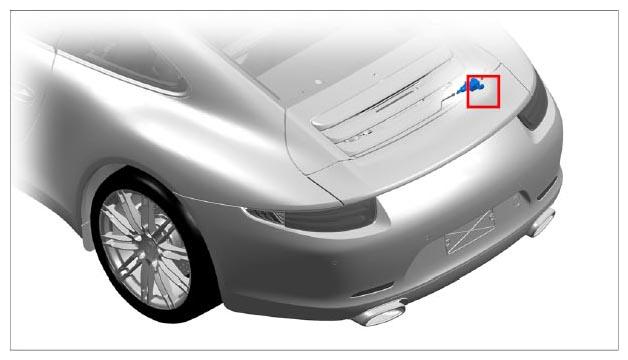

Removing Rear Lid Release Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

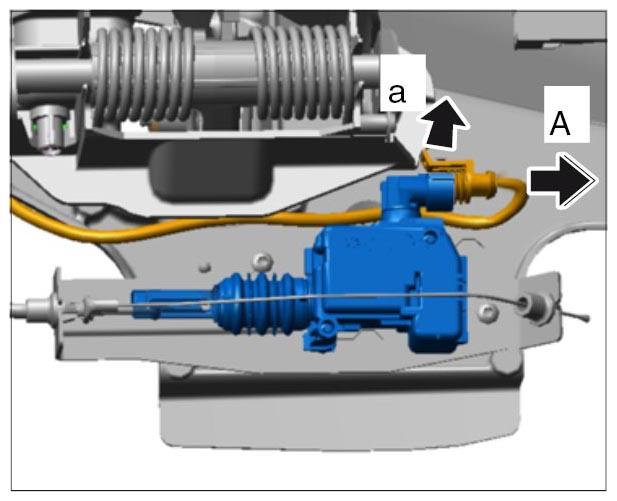

- Release the plug connection -arrow a-
and pull it off -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

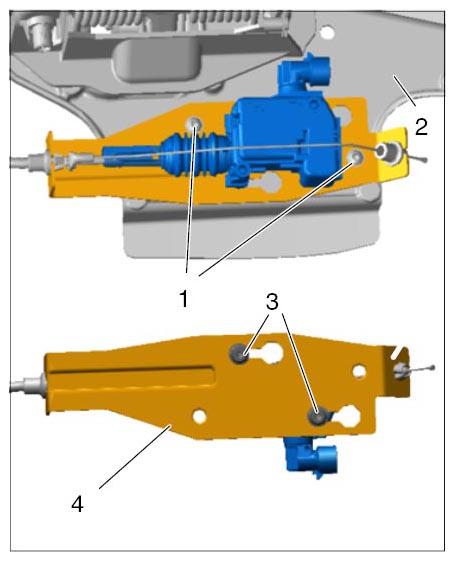

- Remove rear lid release motor.
- 2.1. Unscrew fastening screws securing retaining bracket -1-
to rear spoiler -2-
.
- 2.2. Unscrew fastening screws securing motor -3-
to retaining bracket -4-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

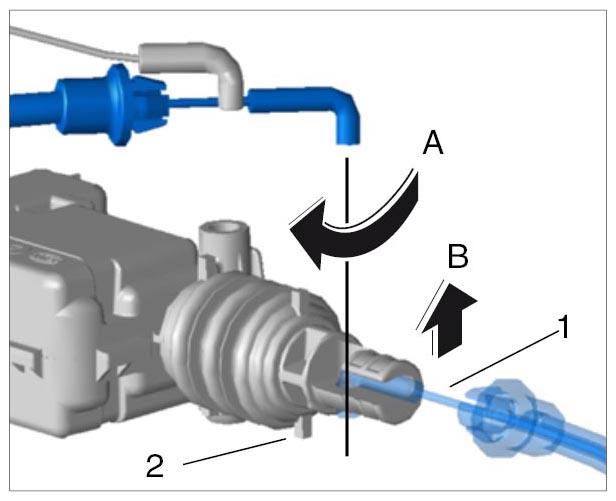

- Twist the bowden cable -1-
in -direction of arrow A-
and remove it from the motor -2-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
