Removing Front Emergency Release

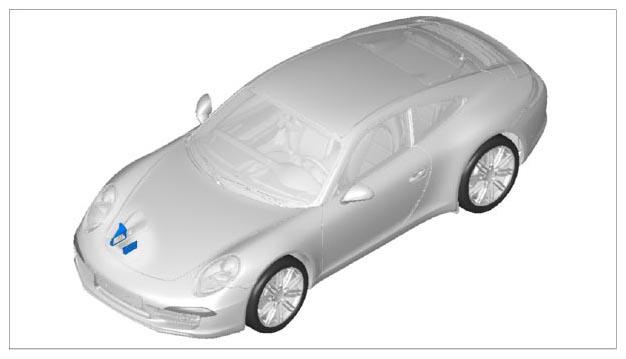

Fig 1: Identifying Front Emergency Release
G09993968Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -1-  and unclip cover with release handle -2-  .
    Fig 2: Identifying Release Handle Screws
    G09993969Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect electric plug connection -1-  for microswitch and remove release handle -2-  .

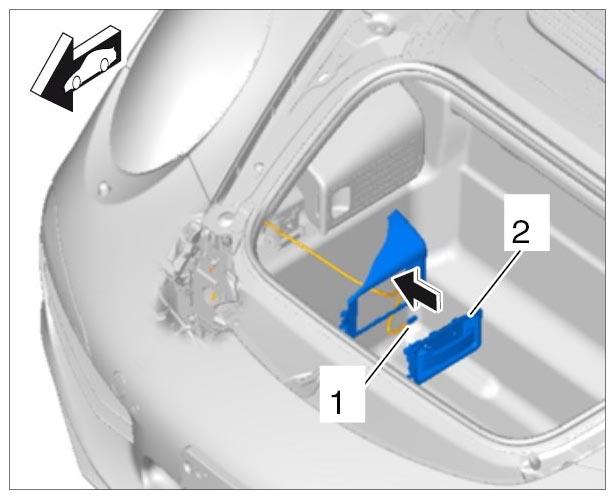

Fig 3: Disconnecting Plug Connection
G09993970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
