Checking Inner Luggage Compartment Release (Trunk Entrapment)

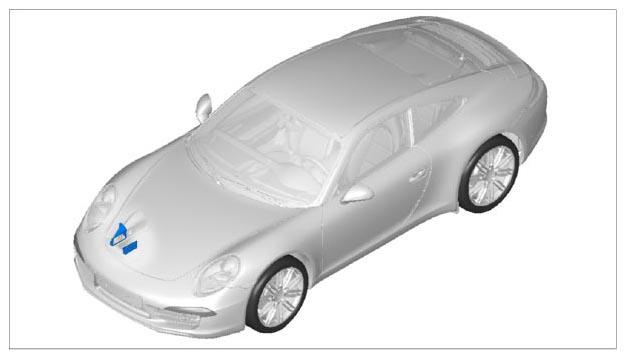

Fig 1: Identifying Front Emergency Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Stop the vehicle immediately when the warning lights come on. The luggage compartment lid opens fully 30 seconds after being released.

1. Check whether the upper part of the lock automatically disengages from the lower part of the lock.
2. → Upper part of lid lock = tool (Porsche spare part) must be engaged in the lower part of the lock in -direction of arrow-  .

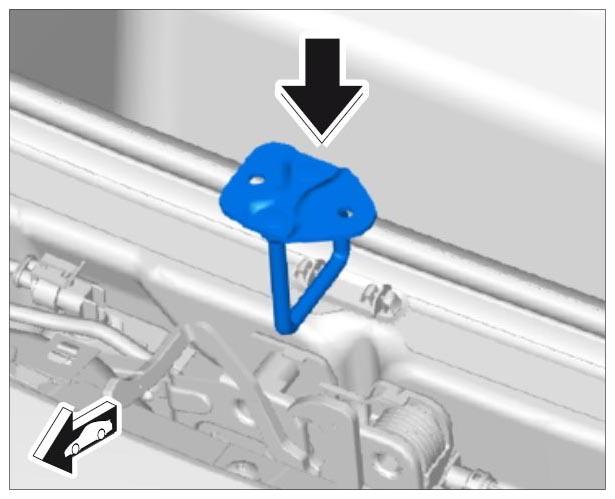

   Fig 2: Locating Lid Lock Upper Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unlock unlocking lever in the luggage compartment. Check whether the upper part of the lid lock disengages automatically.
