Removing Switching Element For Filler Flap

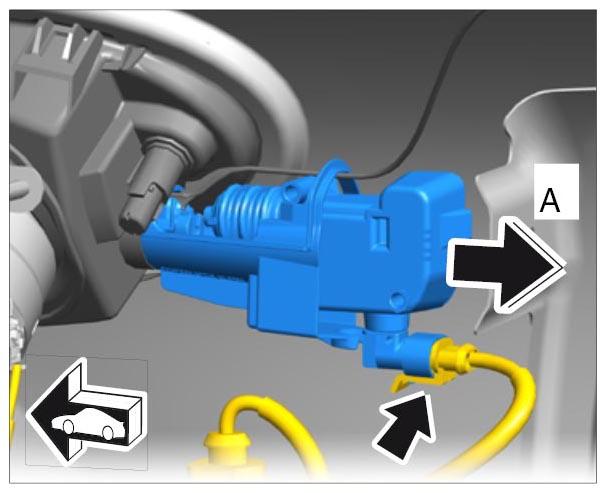

1. Release electric plug connection for switching element for filler flap -arrow-  and pull it off -A-  .
   Fig 1: Disconnecting Switching Element For Filler Flap Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove switching element for filler flap.

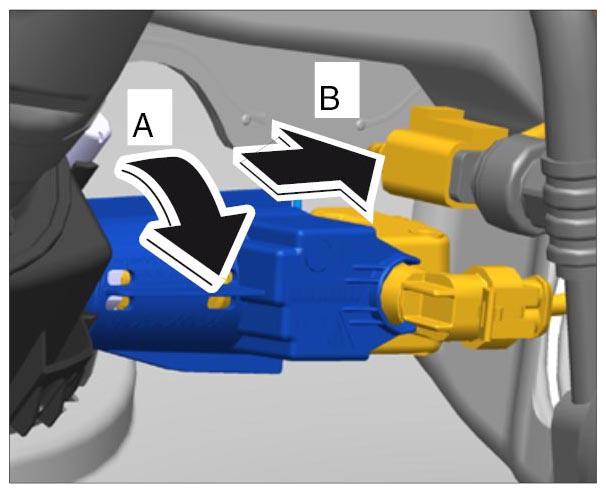

   • 2.1. Turn switching element for filler flap -A-  until it is released.
   • 2.2. Pull out switching element for filler flap -B-  .
   Fig 2: Removing Switching Element For Filler Flap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

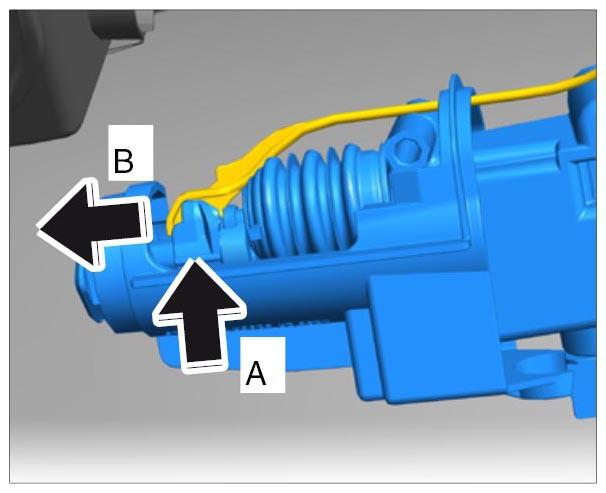

3. Block switching element for filler flap -A-  and disengage emergency release -B-  .

Fig 3: Disengaging Emergency Release From Switching Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
