Installing Switching Element For Filler Flap

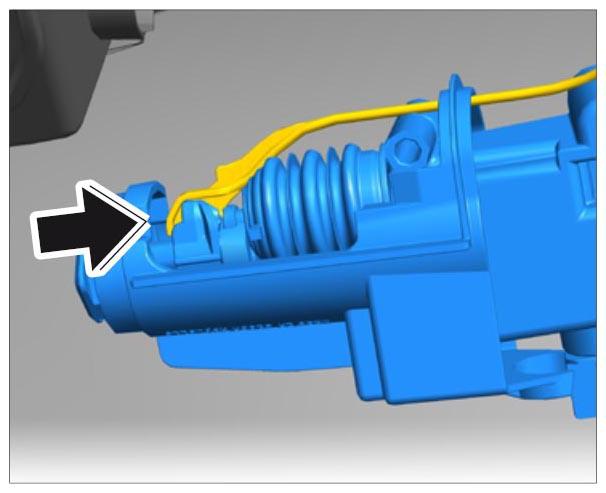

Engage emergency release in switching element for filler flap -arrow- .

Fig 1: Engaging Emergency Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

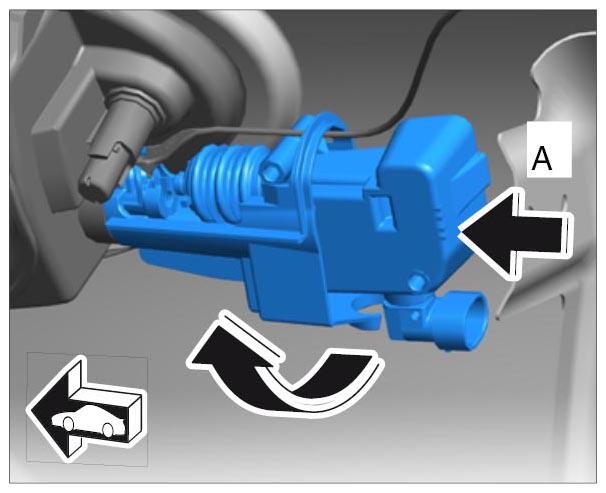

Fit switching element for filler flap on inner part of filler flap -A- and turn it clockwise -arrow- until it engages securely.

Fig 2: Installing Switching Element For Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

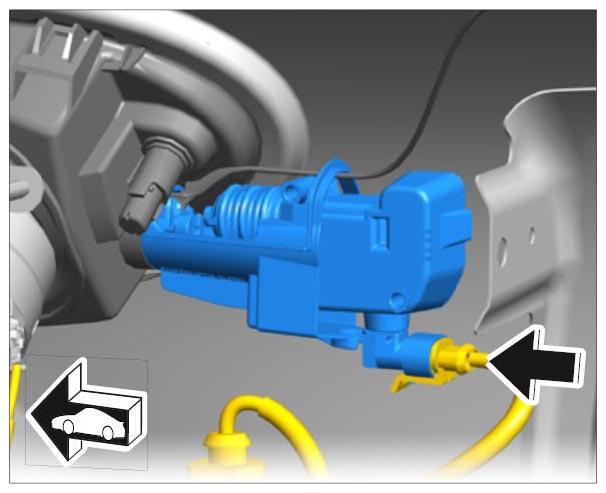

Plug in electric plug connection for switching element for filler flap -arrow- until it engages securely.

Fig 3: Installing Switching Element For Filler Flap Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carry out a function test on switching element for filler flap.
