WM 553719 Removing And Installing Filler Flap (All Models)
>>
Removing Outer Part Of Filler Flap
Removing Outer Part Of Filler Flap
Release retaining lugs
-A-
and pull off outer part
-B-
.

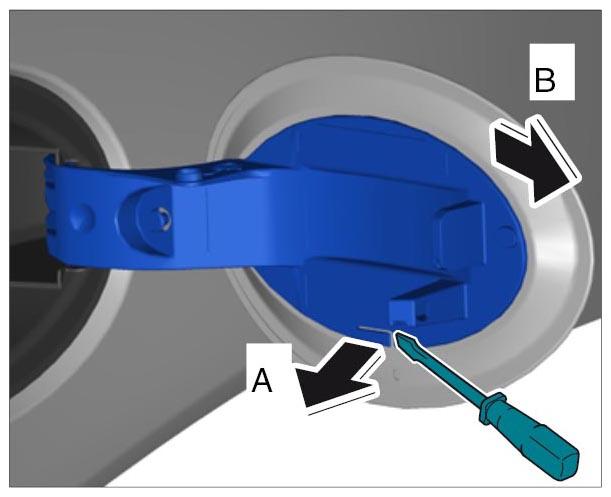

Fig 1: Removing Filler Flap Outer Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
