Removing Inner Part Of Filler Flap
- Remove rear part of front right wheel housing liner. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

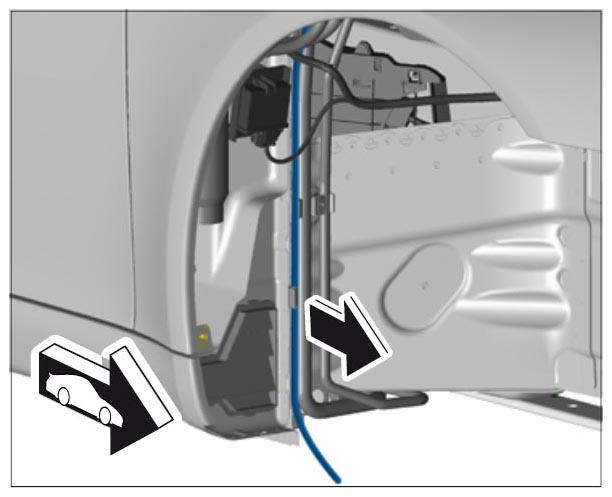

- Unclip drain hose -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

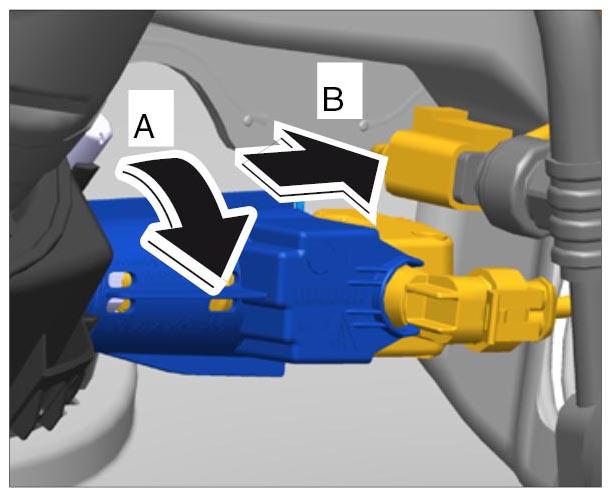

- Twist and release filler flap switching element -A-
. Remove switching element from the rear -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

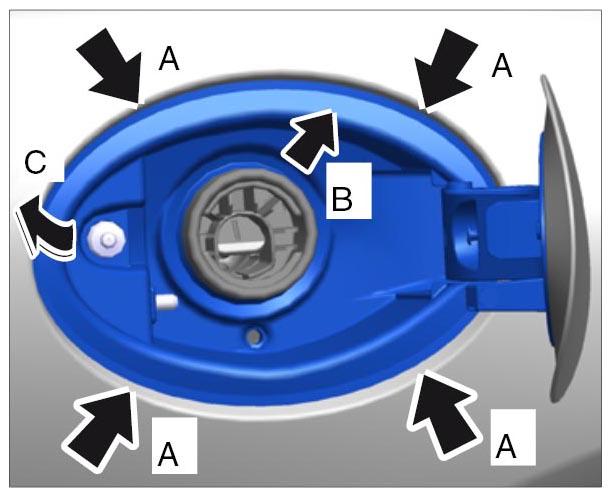

- Remove inner part of filler flap from the body aperture.
- 4.1. Release filler flap locking lugs -A-
.
- 4.2. Push rubber sleeve in direction of arrow -B-
.
- 4.3. Swivel out filler flap from the body aperture -C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
