Removing Front Pneumatic Spring At The Lid

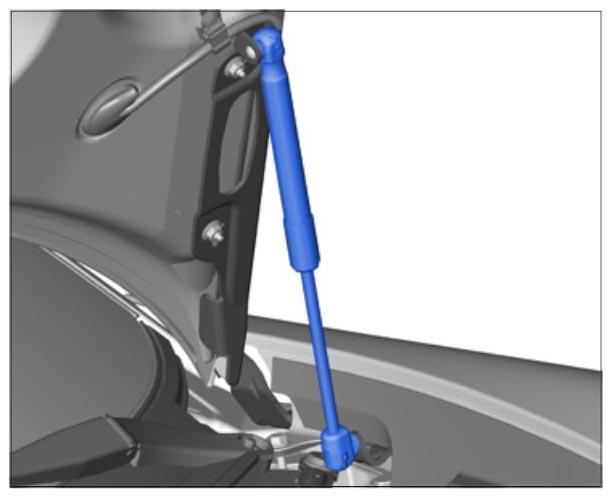

Fig 1: Identifying Front Pneumatic Spring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gas-filled shock absorbers must be in idle state before removal.

→ Open the lid.

→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.

→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.

1. Open the front lid.
2. A second person should hold the front lid to prevent it from closing accidentally.

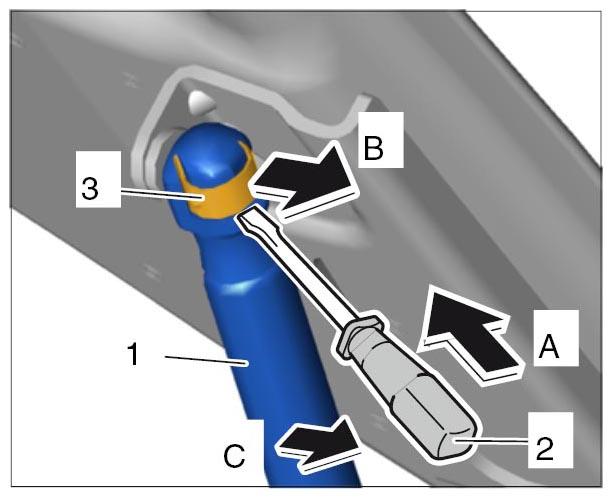

3. Insert a screwdriver -2-  between the head of the pneumatic spring and the safety clip -3-  (-A-  ).
4. Release the safety clip -3-  by levering the screwdriver -2-  towards the pneumatic spring -B-  . The safety clip remains in the head of the pneumatic spring.
5. Pull the pneumatic spring -1-  off the ball joint -C-  .
6. Remove the screwdriver.
7. Remove pneumatic spring -1-  .
   Fig 2: Removing Front Pneumatic Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
