Removing Front Lid Hinge

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Unscrew fastening screws -1-  .

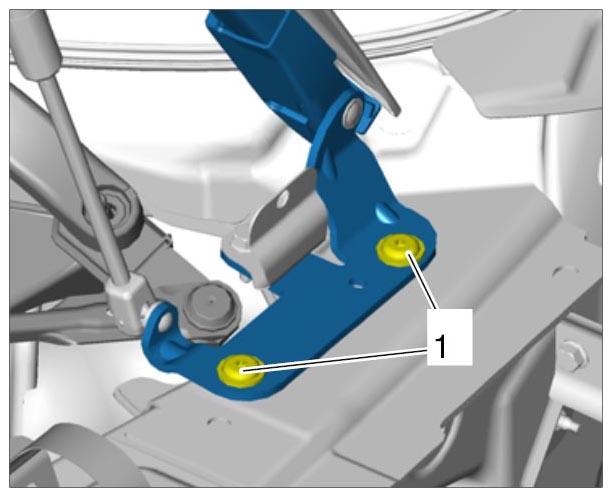

   Fig 1: Identifying Front Lid Hinge Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove lid hinge.
