Installing Front Lid Hinge

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Roughly align the lid hinge according to the old impressions.
2. Screw in fastening screws -1-  and tighten to the specified tightening torque → Tightening Torque: 9.7 Nm (7.5 ft. lbs.)  .

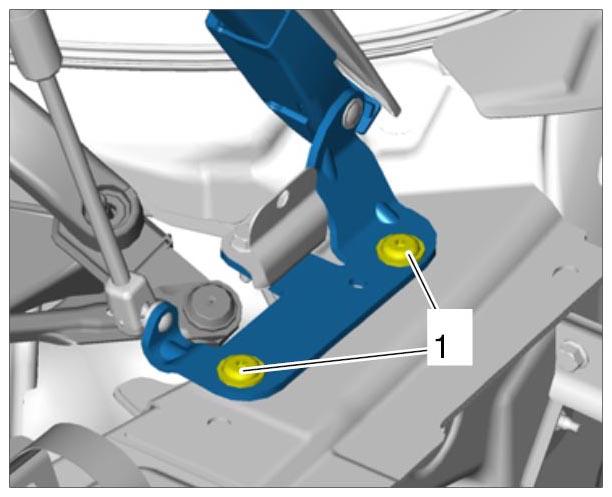

Fig 1: Identifying Front Lid Hinge Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
