Removing Water Hose

Pull hose for windshield washer system at the left out of the lid -arrow- .

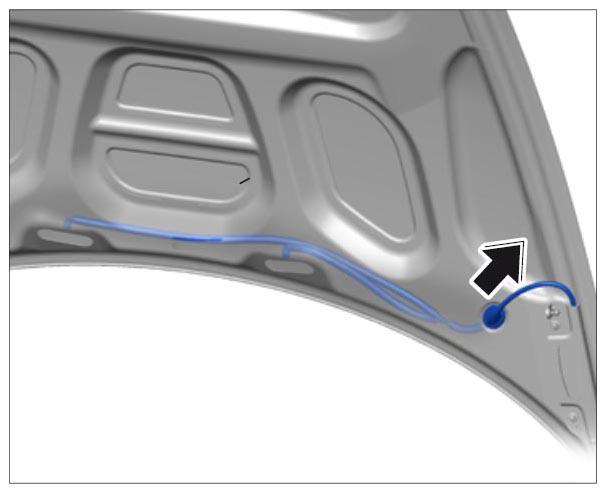

Fig 1: Removing Water Hose

G09993940

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
