Removing Front Lid

Information

• Get another person to help when removing and installing the front lid.

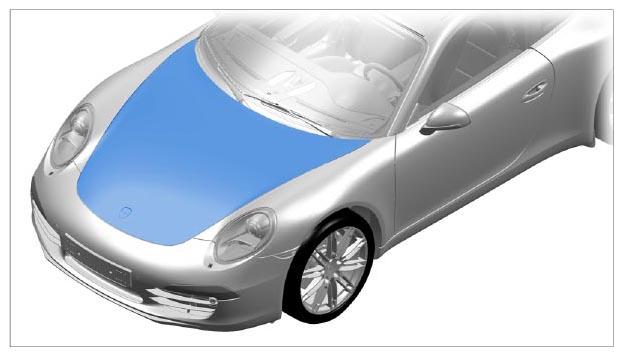

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

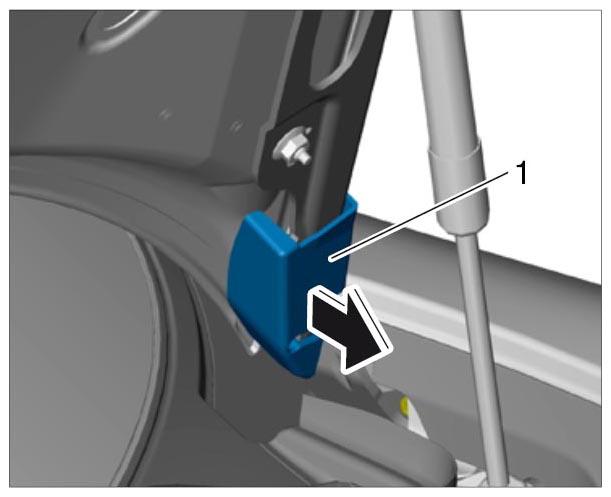

1. Remove cover -1-  on hinge at the left and right.
   Fig 2: Removing Hinge Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

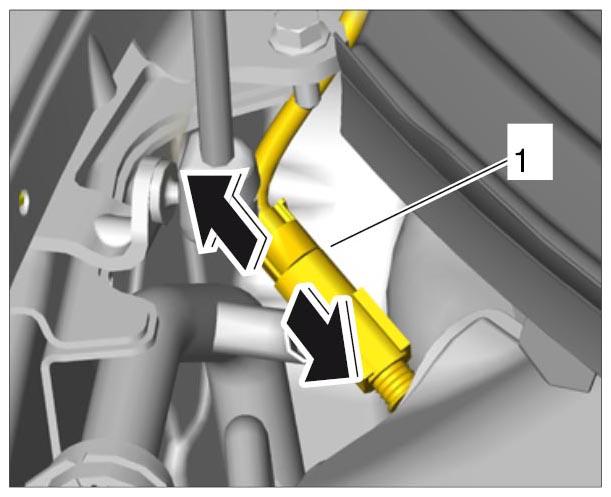

2. Unplug cable plug -1-  for spray nozzle heating at the right.
   Fig 3: Removing Cable Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

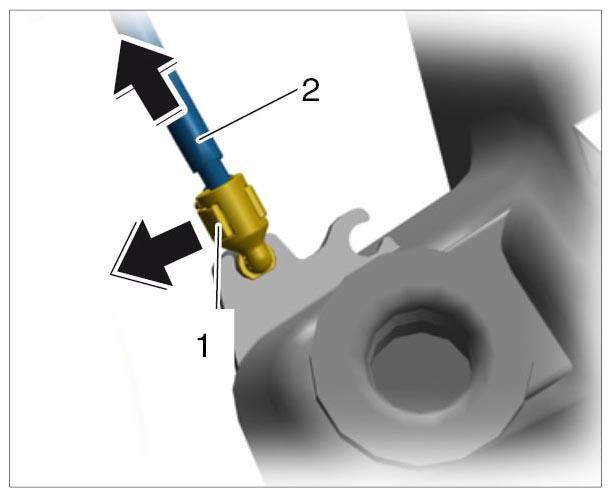

3. Push back clip -1-  for windshield washer hose -arrow-  and pull out hose -2-  (-arrow-  ).
   Fig 4: Pulling Out Windshield Washer Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

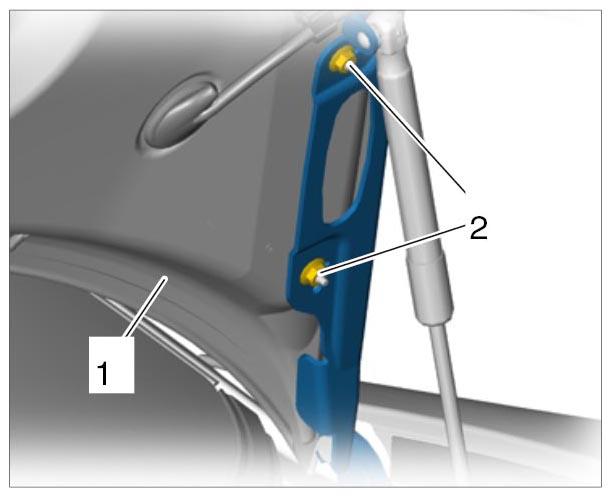

4. Unscrew and remove fastening nuts -2-  on the front lid -1-  .

Fig 5: Identifying Front Lid Nuts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
