Adjusting Front Lid: Overview

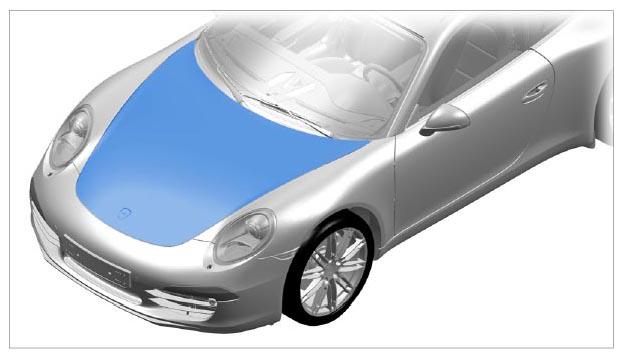

Fig 1: Identifying Front Lid
G09993930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. By moving the front lid at the hinges, adjust the contours with respect to the wings, main headlights and front apron. → WM 5X00IN GAP DIMENSIONS

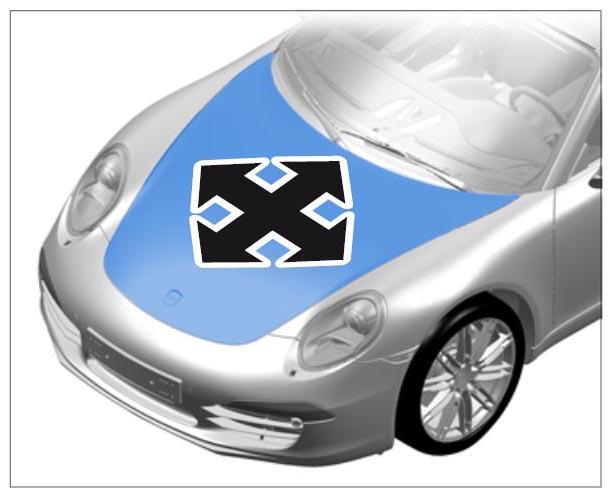

    Fig 2: Adjusting Front Lid
    G09993931Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tighten fastening nuts. →Tightening Torque : 9.7 Nm (7.5 ft. lbs.)
