Adjusting Lid In X And Y Direction

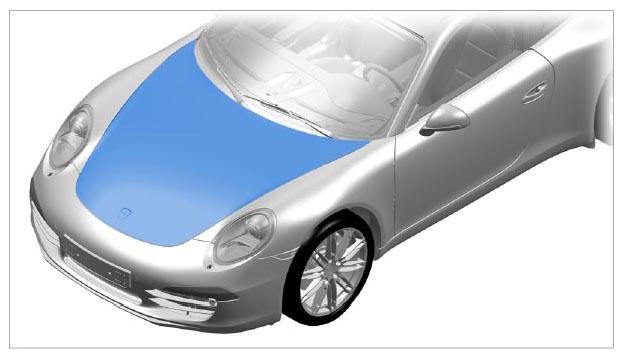

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use star gauges to set and measure the gap dimensions. Star Gauges For Body Gap Dimensions Nr. 127-1

1. Check gap dimensions on body. → WM 5X00IN GAP DIMENSIONS

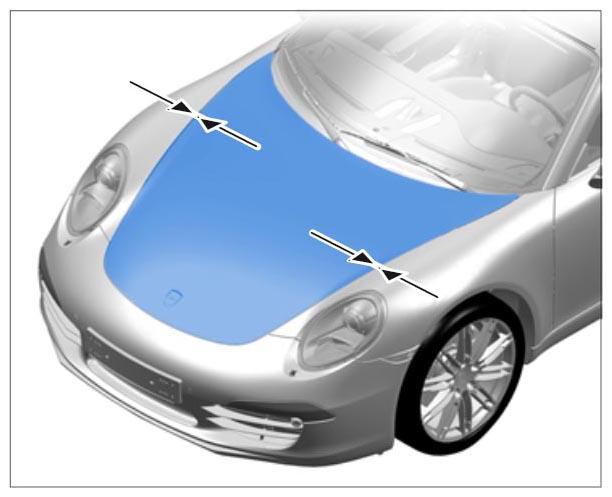

   Fig 2: Checking Gap Dimensions On Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove fastening nuts -2-  on both sides of the front lid -1-  .

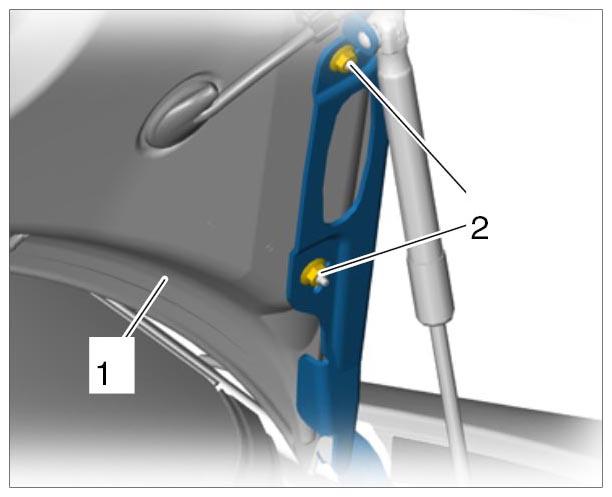

Fig 3: Identifying Front Lid Nuts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
