Removing Upper Part Of Front Lid Lock

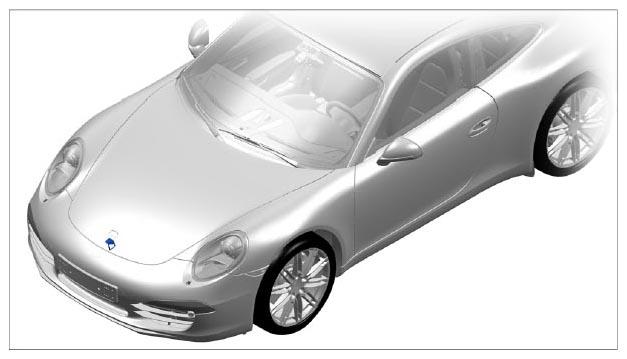

Fig 1: Identifying Upper Part Of Front Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

New fastening screws must be used following removal.

1. Unscrew -1-  fastening screws and remove upper part of lid lock -2-  .

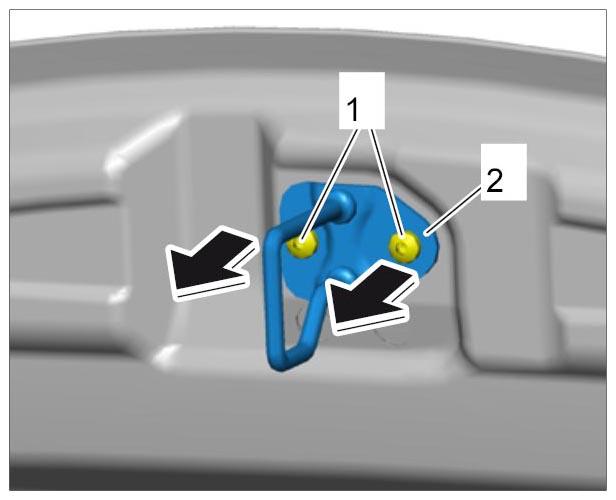

Fig 2: Removing Front Lid Lock Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
