Installing Upper Part Of Front Lid Lock

Fit upper part of front lid lock -2- , screw in new fastening screws -1- and tighten to the specified tightening torque.
→ Tightening Torque: 9.7 Nm (7.5 ft. lbs.) +/-1 Nm (+/-0.5 ft. lbs.)

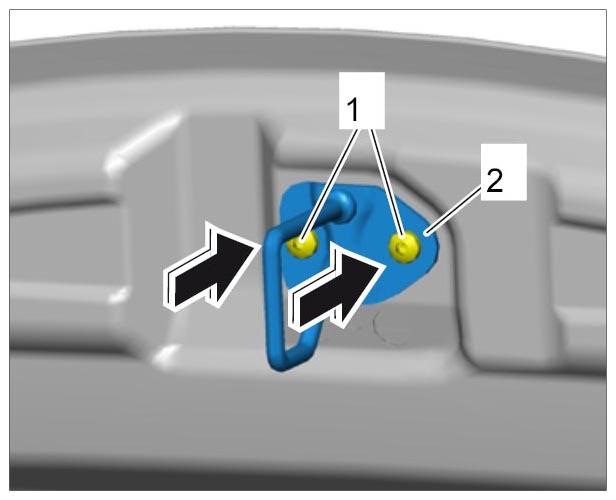

Fig 1: Installing Upper Part Of Front Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the lid and check that the upper part of the lid lock engages at the center of the lower part of the lid lock. -arrow-
If it does not engage properly, adjust lower part of lid lock. → 551719 REMOVING AND INSTALLING LOWER PART OF FRONT LID LOCK

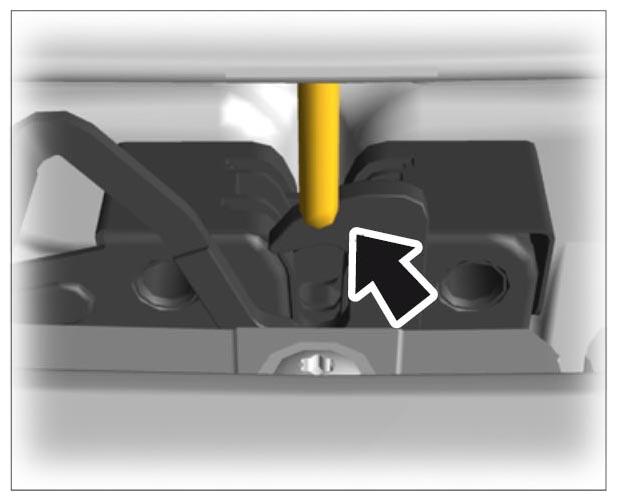

Fig 2: Checking Upper Part Of Lid Lock Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
