Removing Lower Part Of Front Lid Lock

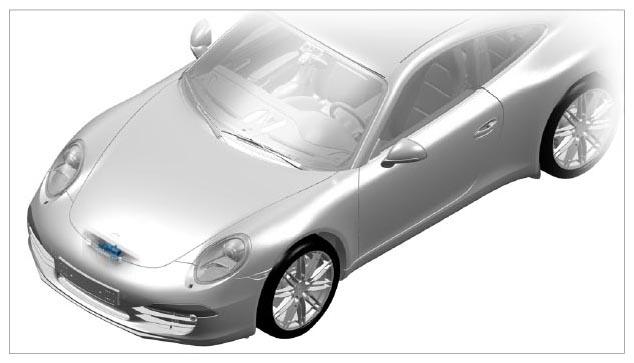

Fig 1: Identifying Lid Lock Lower Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release the locking lugs -arrow A-  and disconnect electric plug connections -3-  and -5-  (-arrow B-  ).

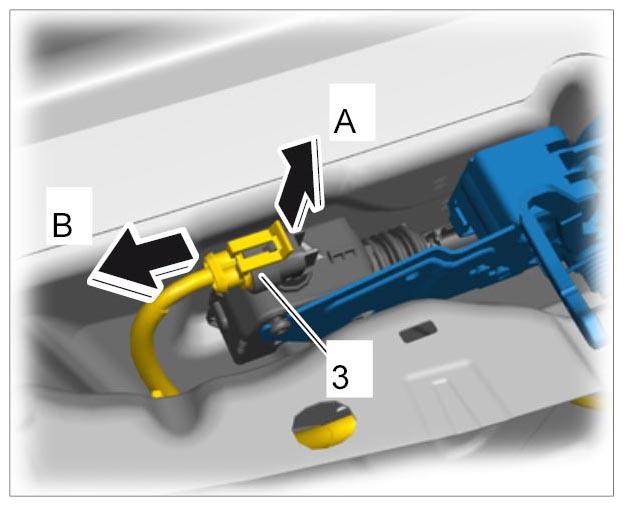

   Fig 2: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

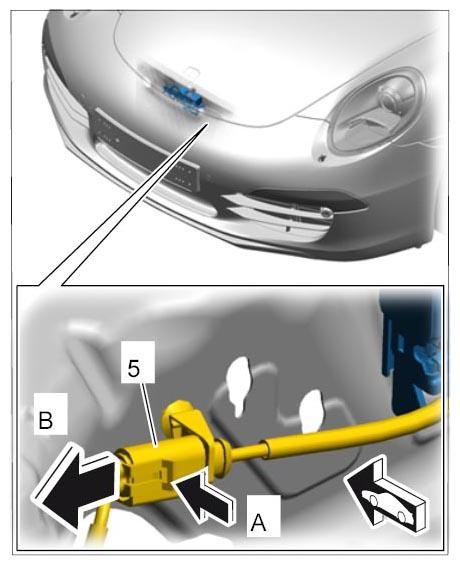

   Fig 3: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen luggage compartment trim.

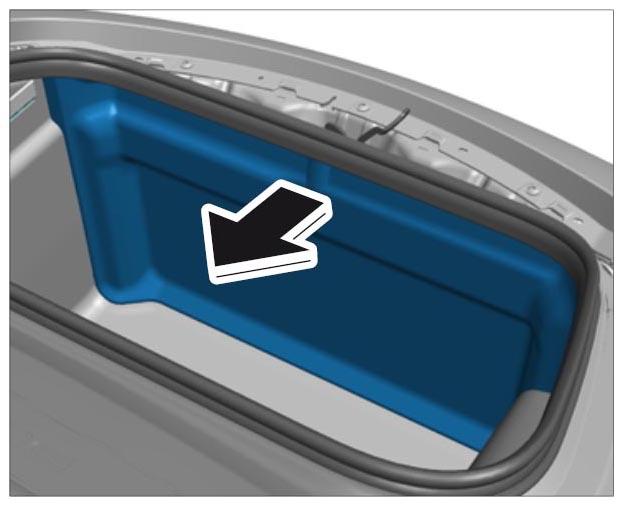

   Fig 4: Loosening Luggage Compartment Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew fastening screws -2-  on lower part of lid lock -1-  .

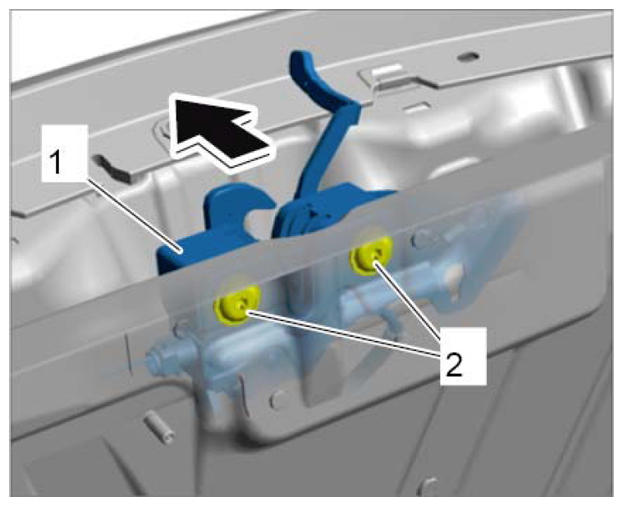

Fig 5: Removing Lid Lock Lower Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove lower part of lid lock.
5. Disengage bowden cable -4-  on lower part of lid lock.

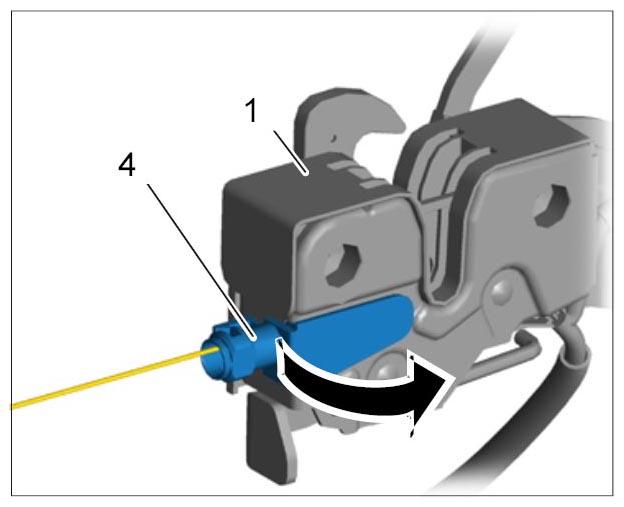

Fig 6: Disengaging Bowden Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
