Installing Lower Part Of Lid Lock

  1. Clip driver into installation position -arrow A-  .
  2. Fit bowden cable on lower part of lock -arrow B-  and clip it in -arrow C-  .

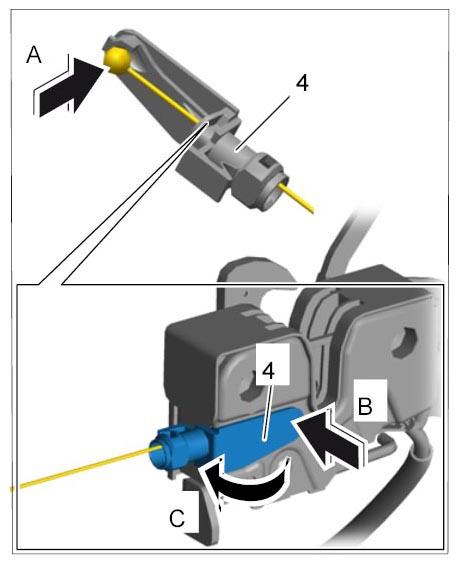

    Fig 1: Engaging Bowden Cable
    G09993921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. The rest of the installation is performed in reverse order to removal.
Location Description Type Basic Value Tolerance 1 Tolerance 2
Fastening Screws On Lid Lock   Tightening Torque 9.7 Nm (7.5 ft. lbs.) +/-1 Nm (+/- 0.5 ft. lbs.)
