Removing Inner Side Section

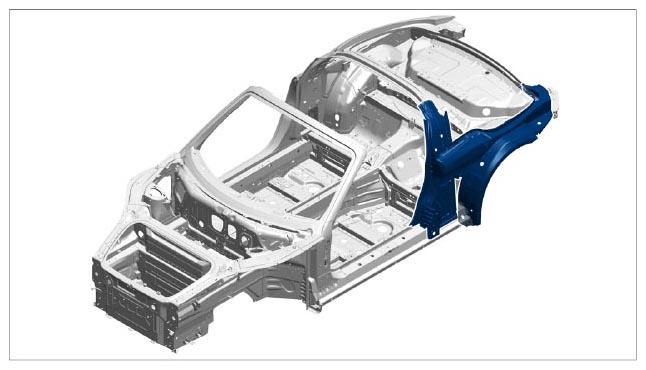

Fig 1: Inner Side Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using Spotweld Drill Nr. 129  .
   1. 1.1. Grind down welded seams in area -A-  .

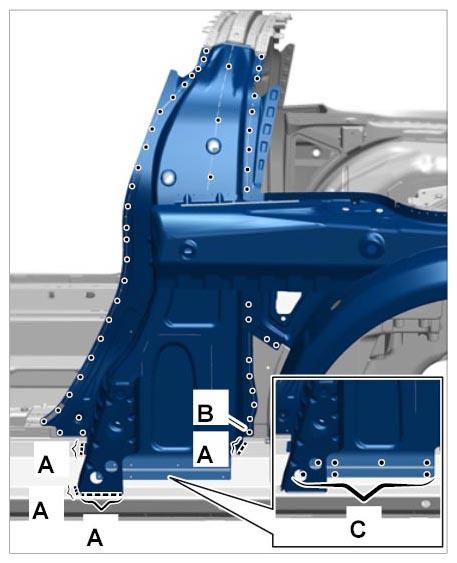

   Fig 2: Identifying Inner Side Section Welded Seams Area (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

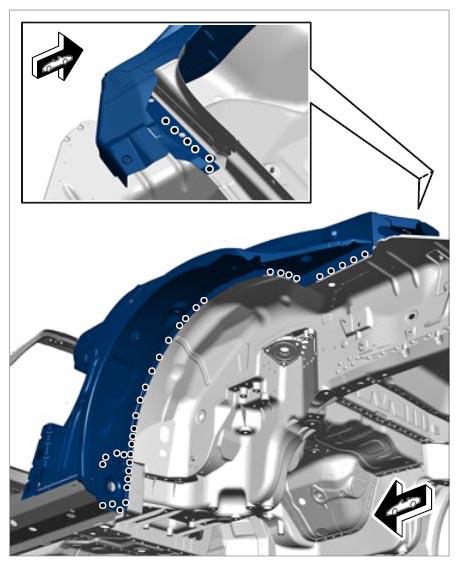

   Fig 3: Identifying Inner Side Section Welded Seams Area (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

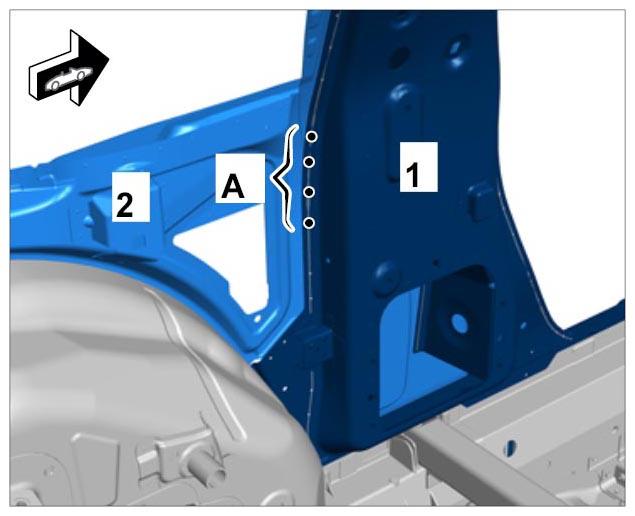

2. Drill out resistance spotwelds -A-  through the side member reinforcement -1-  and inner side section -2-  .
   Fig 4: Identifying Inner Side Section Resistance Spotwelds Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat the marked bonding areas.

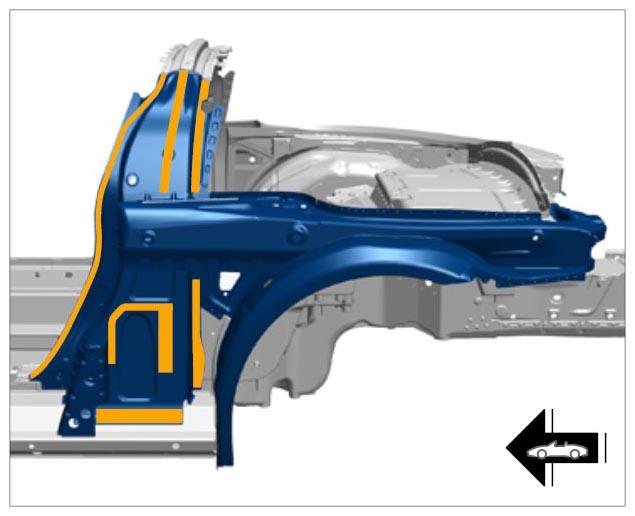

   Fig 5: Identifying Inner Side Section Bonding Areas (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

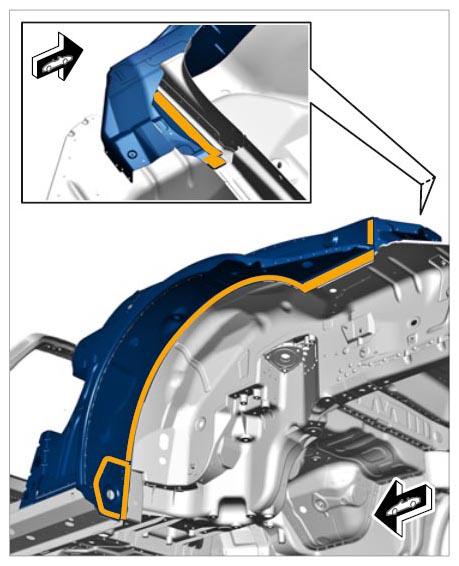

   Fig 6: Identifying Inner Side Section Bonding Areas (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove inner side section.
