Removing Cover For Rear Underbody

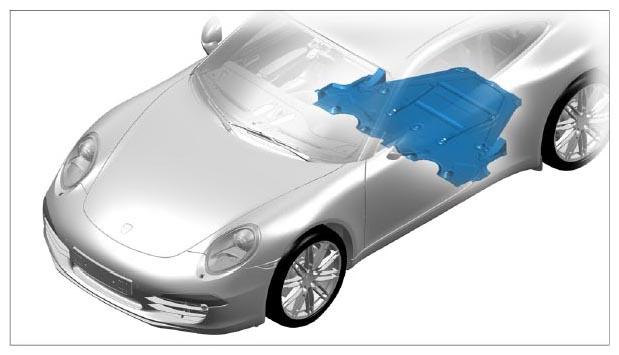

Fig 1: Rear Underbody Component Location
G09993752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

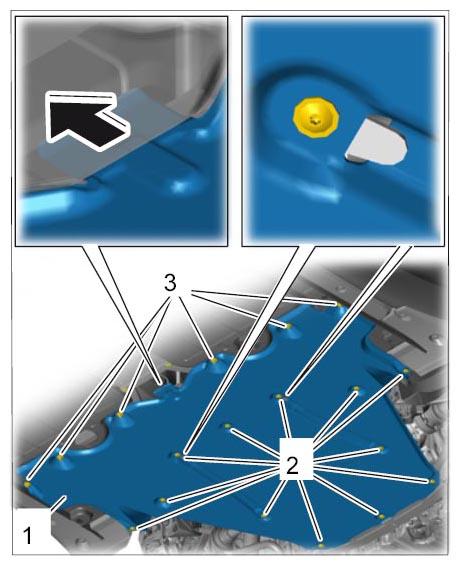

  1. Unscrew fastening screws -2-  and fastening nuts -3-  .
    G09993753Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off cover -1-  at the tabs -arrows-  .
  3. Remove cover for rear underbody -1-  .
