Fig 1: Cover For Center Underbody Component Location (Except Carrera "Edition", Carrera Cabriolet "Edition", Carrera 4 "Edition", Targa 4, Targa 4S, Targa 4 Gts, Carrera 4 Cabriolet "Edition")
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

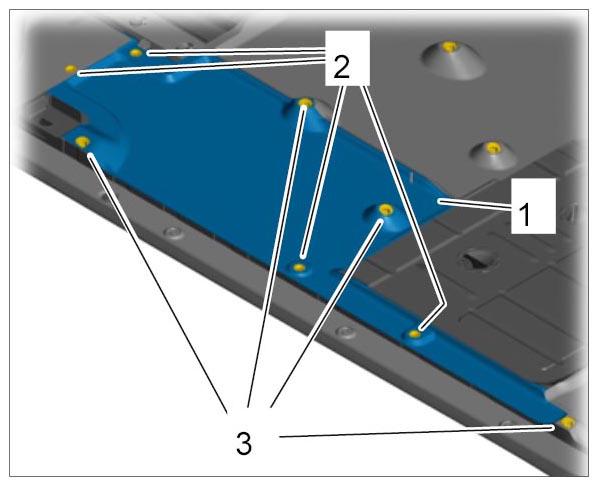

Unscrew fastening screws -2-
and fastening nuts -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull cover for side underbody -1-
out of the overlap with the rear cover.
Pull cover for side underbody -1-
out under the front wheel arch cover.
