Removing Cover For Front Underbody

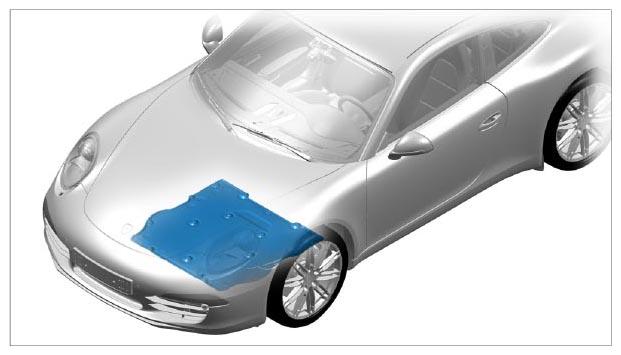

Fig 1: Cover For Front Underbody Component Location
G09993744Courtesy of PORSCHE CARS NORTH AMERICA, INC.

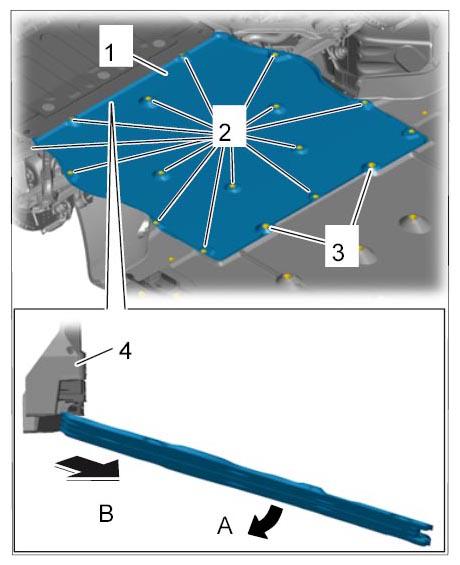

  1. Unscrew fastening screws -2-  and fastening nuts -3-  .
    G09993745Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Swivel cover for front underbody -1-  down -arrow A-  and pull it out of the overlap -arrow B-  .
  3. Remove cover for front underbody.
