Technical Values

Location	Description	Type	Basic value

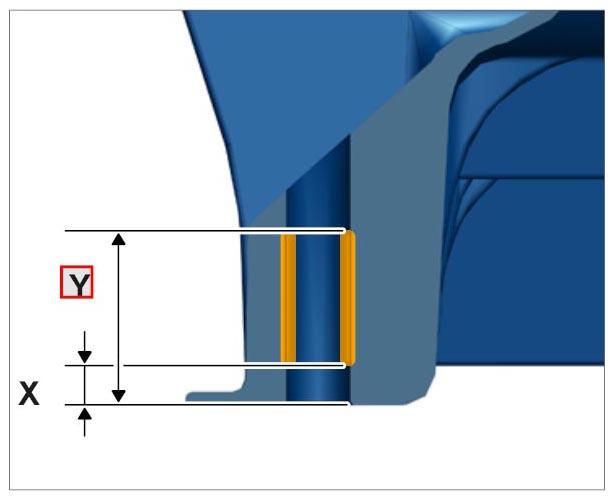

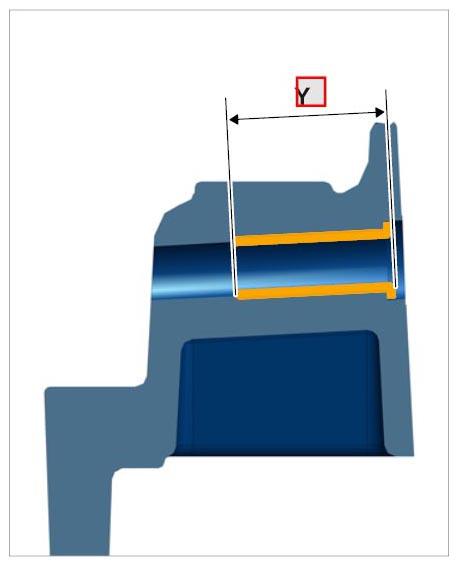

Thread 1 and 2	Dimension Y	Length	33 mm

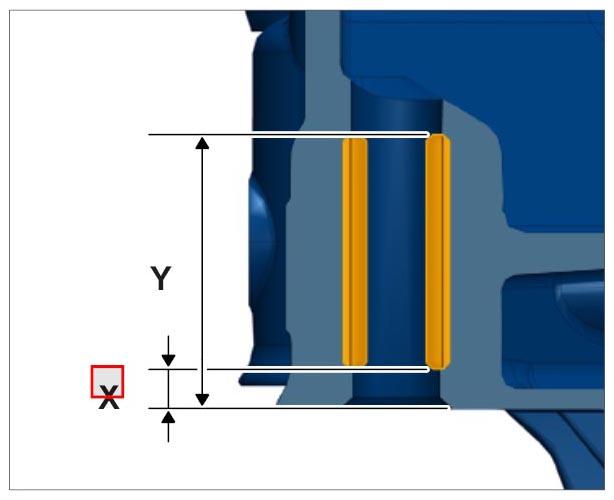

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair
Thread 1 and 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cross member thread repair

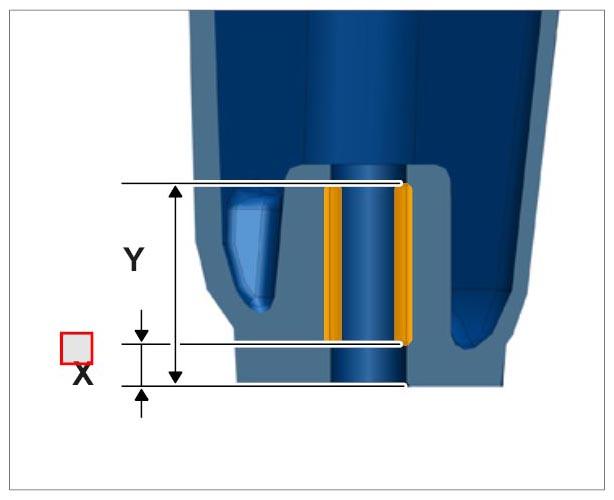

Thread 1	Dimension Y	Length	20 mm

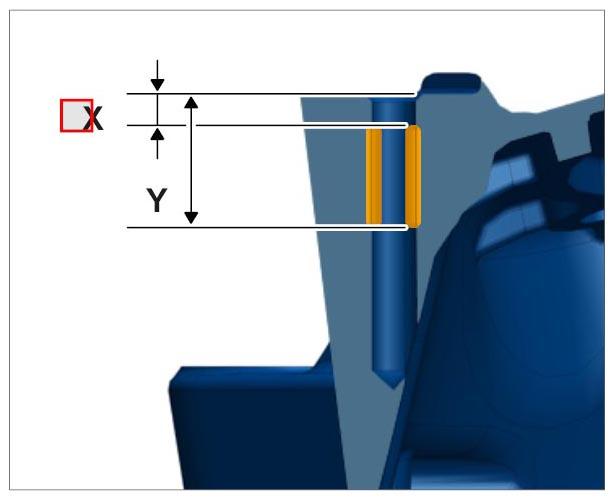

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension Y	Length	20 mm

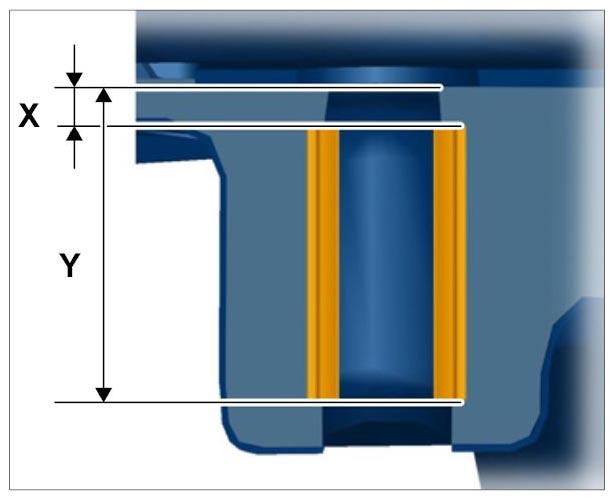

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount
Thread 2	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

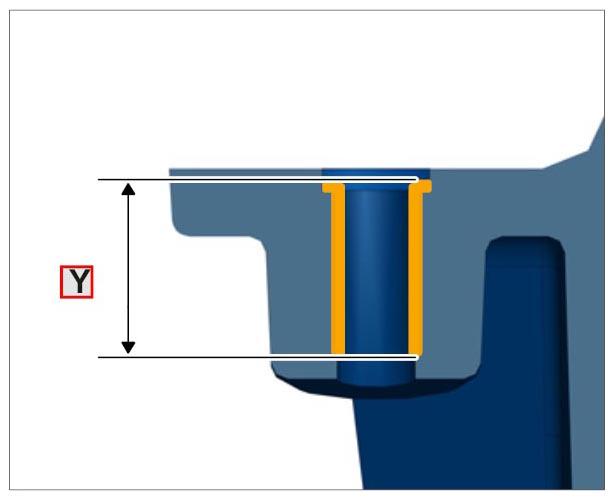

Thread 3	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on spring strut mount

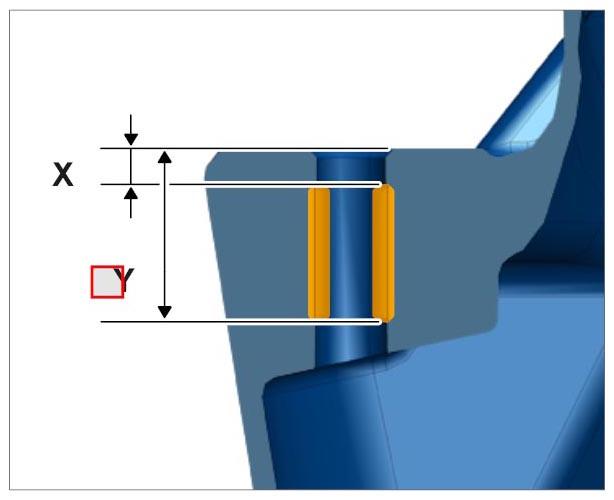

Thread 1	Dimension Y	Length	27 mm

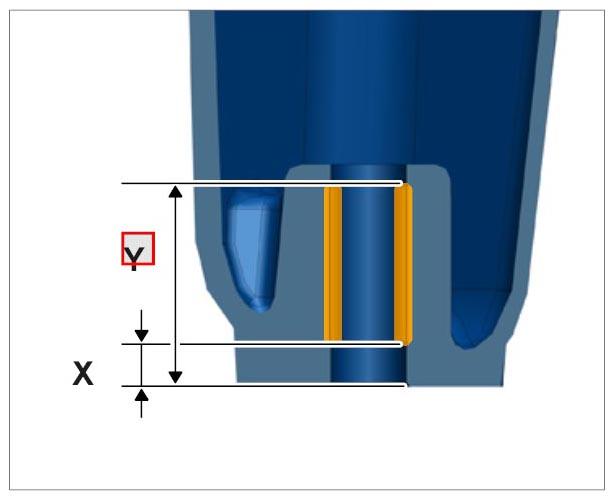

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

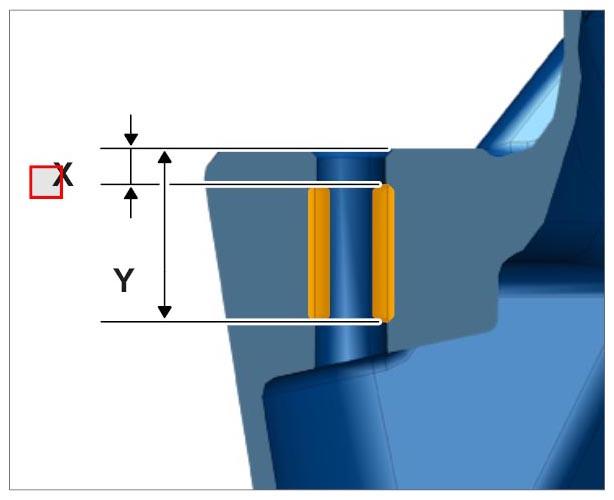

Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 2 and 3	Dimension Y	Length	25 mm

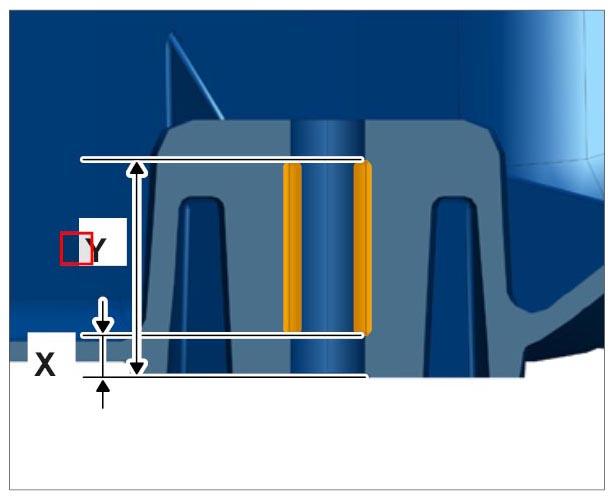

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

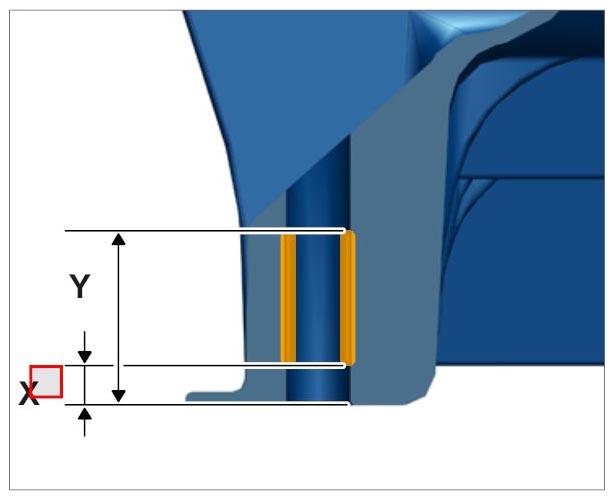

Thread 2 and 3	Dimension X	Length	5 mm

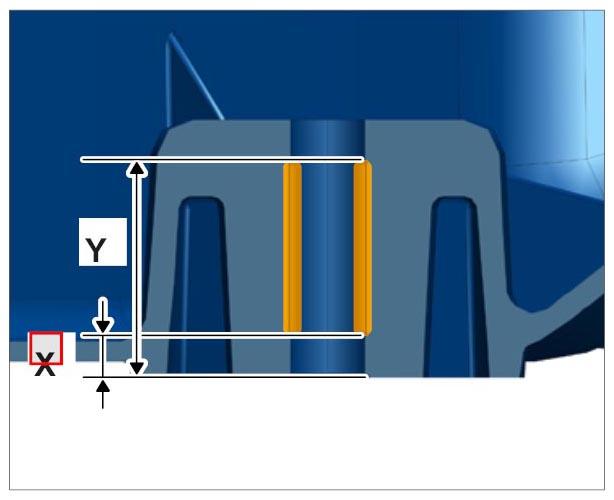

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 4	Dimension Y	Length	25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 4	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member
Thread 5	Dimension Y	Length	37 mm

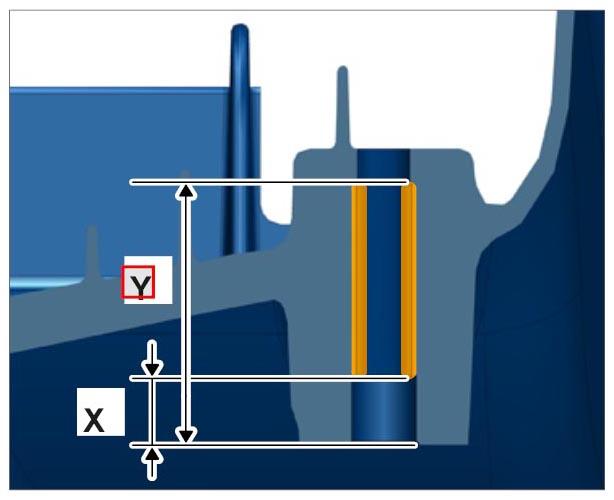

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

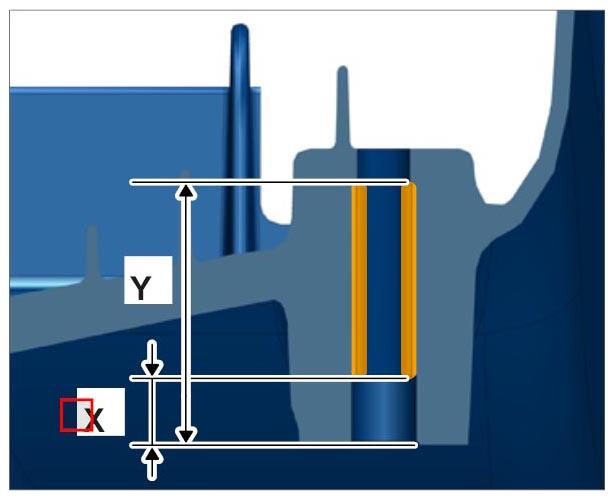

Thread 5	Dimension X	Length	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

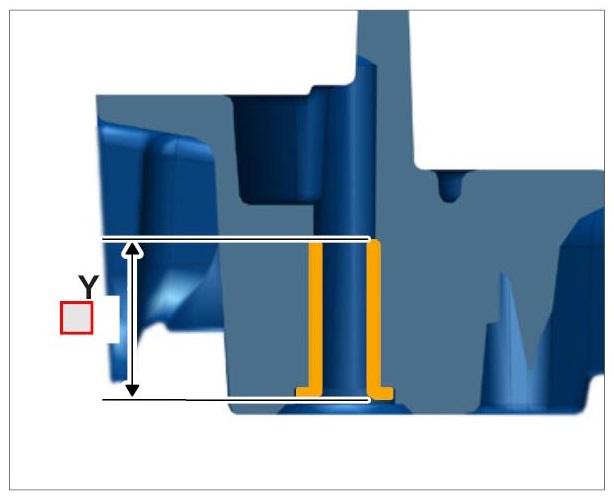

Thread 6	Dimension Y	Length	16.2 mm

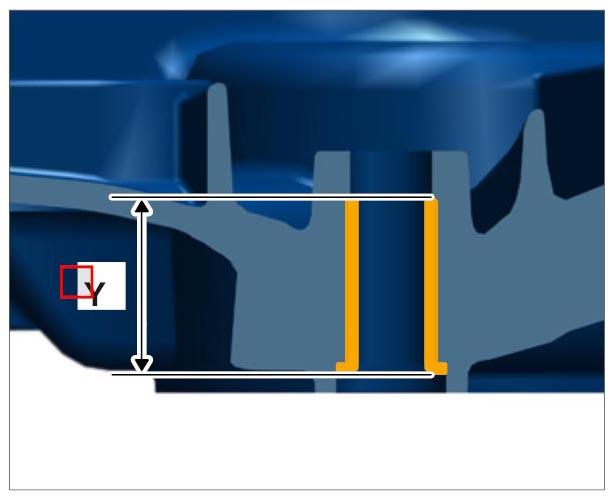

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on rear side member

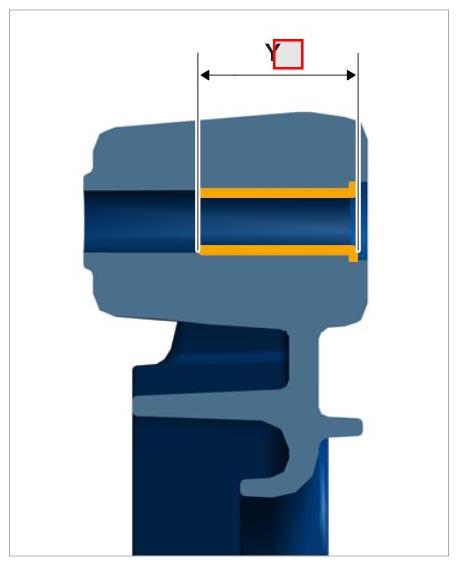

Thread 1	Dimension Y	Length	16.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Engine mount thread repairs
Thread 2	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Engine mount thread repairs
Thread 1	Dimension Y	Length	16.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs on impact absorber mount
Thread 1	Dimension X	Length	5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for belt screws
Thread 1	Dimension Y	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Thread repairs for belt screws
