Repairing Thread On Belt Screws
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.
Information

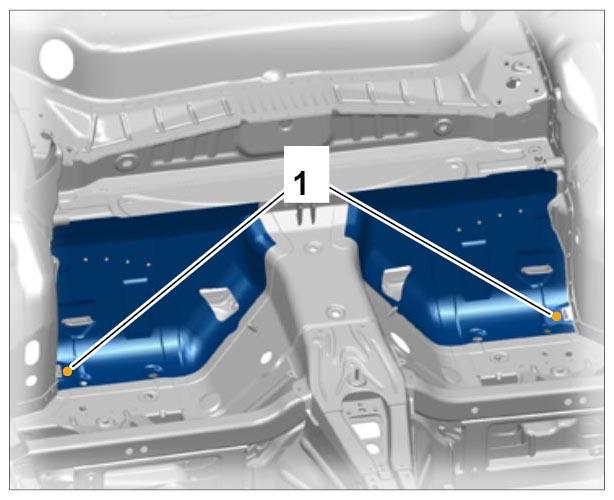

- Modified belt screws at the rear of the vehicle.
Only for vehicles with the relevant belt screws.
| Thread 1; belt screws | Fine thread, M16 x 1.5 |
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

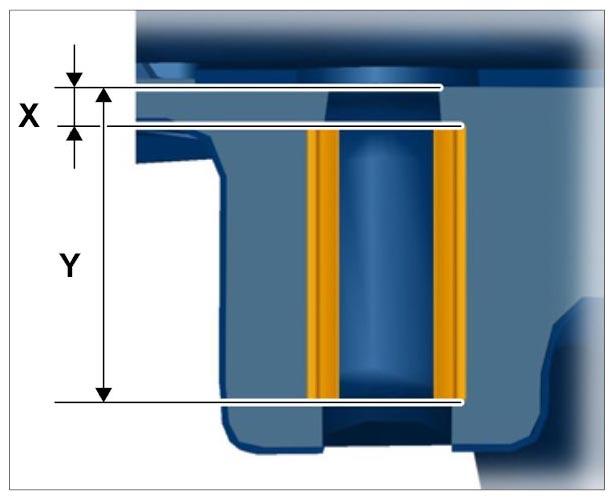

| Thread 1 | Dimension X | Length | 5 mm | ||
|
Thread repairs for belt screws |
|||||
| Thread 1 | Dimension Y | Length | 20 mm | ||
|
Thread repairs for belt screws |
|||||
- Repair thread →
WM 5X00IN THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")
.
Use repair kit Time-Sert thread repair kit 9397 with screw-in tool Screw-in tool 9843/4 and threaded bush
→ THREADED BUSH 999.504.264.01.
