Repairing Rear Longitudinal Member (Impact Absorber Mount) Thread
Information
- Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.

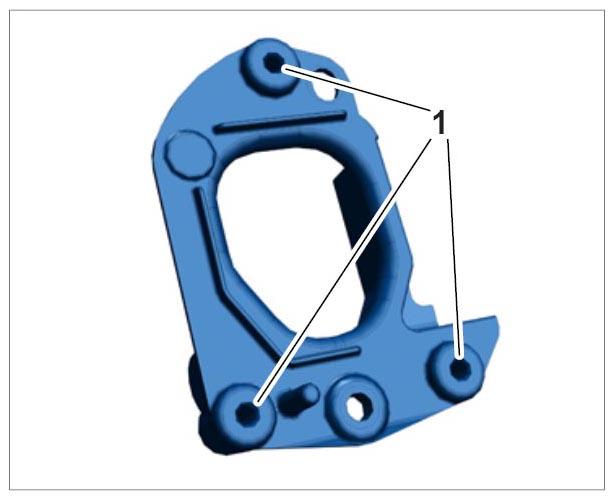

M8 thread in cast part (3x)

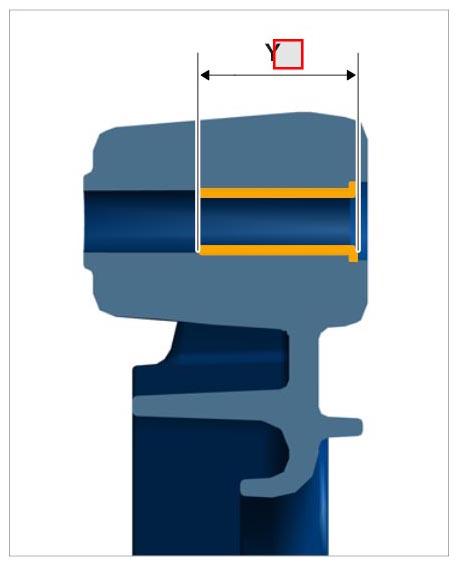

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Thread 1 | Dimension Y | Length | 16.2 mm | ||
|
Thread repairs on impact absorber mount |
|||||
- Repair thread →
WM 5X00IN THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")
.
Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.2 with long threaded bush.
