Repairing Rear Cross Member (Engine Mount) Thread

Information

Remove wire thread inserts (Helicoil) that are installed as standard before drilling out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

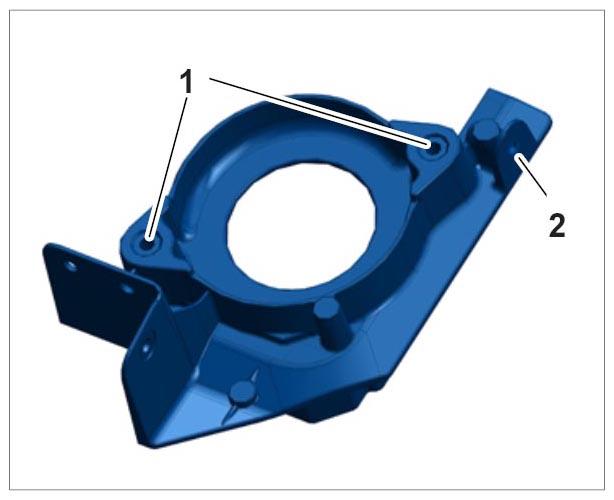

Thread 1; in cast part	M8 thread (2x)
Thread 2; in cast part for securing air cleaner	M6 x 10 thread

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

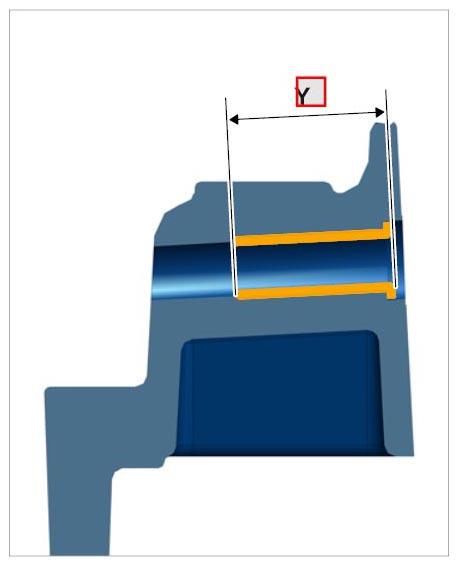

Thread 1	Dimension Y	Length	16.2 mm

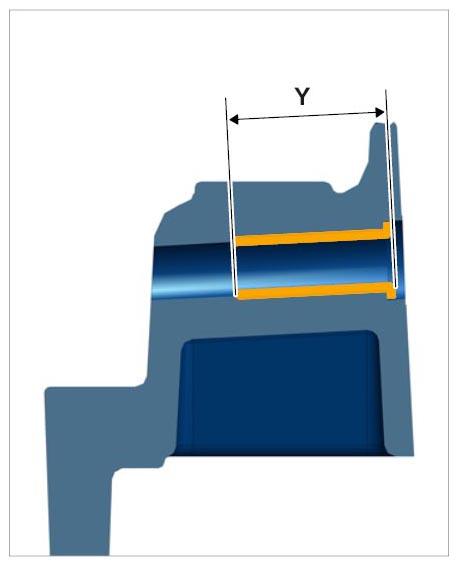

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Engine mount thread repairs

G09993736

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Repair thread → WM 5X00IN THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.2 with long threaded bush.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

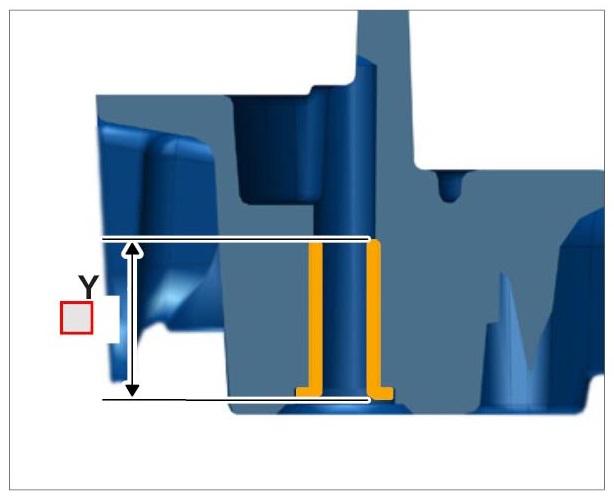

Thread 2	Dimension Y	Length	9.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Engine mount thread repairs

Repair thread → WM 5X00IN THREAD REPAIRS FOR THREADED BUSHES WITH COLLAR (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .
Use repair kit Time-Sert thread repair kit Nr.122-1 Pos.1 with short threaded bush.
