Repairing (Luggage Compartment) Cross Member Thread
Information

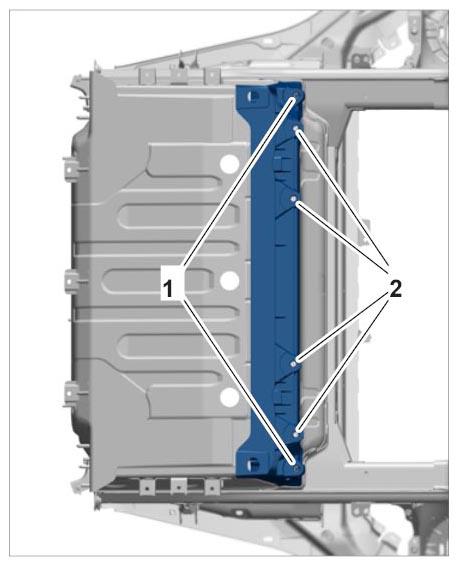

| Thread 1; for securing front axle (Helicoil) | M12 x 1.5 x 30 |
| Thread 2; for securing axle mounting (Helicoil) | M12 x 1.5 x 30 |

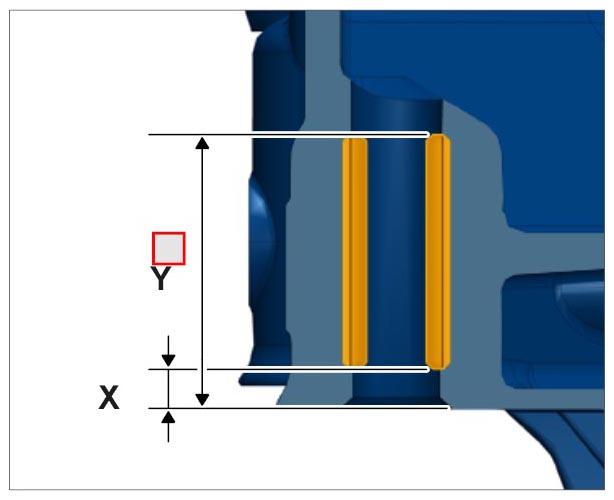

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Thread 1 and 2 | Dimension Y | Length | 33 mm | ||
|
Cross member thread repair |
|||||
| Thread 1 and 2 | Dimension X | Length | 5 mm | ||
|
Cross member thread repair |
|||||
- Repair thread →
WM 5X00IN THREAD REPAIRS FOR THREADED BUSHES WITHOUT COLLAR (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION")
.
Use repair kit Thread repair kit 9843 with threaded bush → THREADED BUSH 999.504.266.01.
