Overview Of Repair Areas

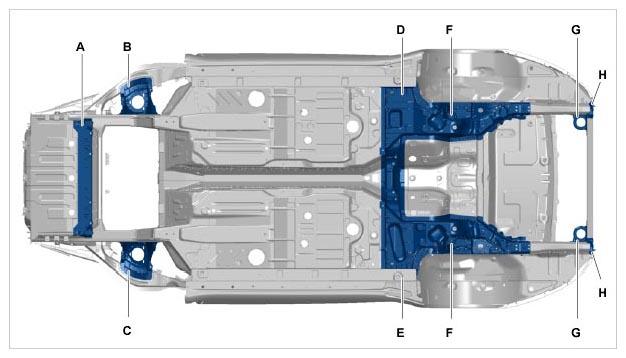

Fig 1: Thread Repair Locations
G09993713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Luggage compartment cross member
  2. Spring strut mount, left
  3. Spring strut mount, right
  4. Rear left bracket
  5. Rear right bracket
  6. Belt screws, left & right
  7. Engine mount, left & right
  8. Engine impact absorber mounting, left & right
