Preparing Body Connection Points

Align the sealing surface and connections of the body.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
De-burr connection points and prepare for bonding and riveting.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

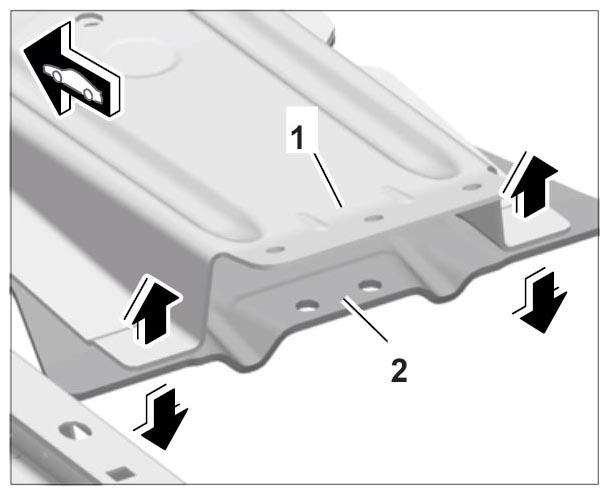

Establish a sufficient gap between the connection bracket -1- and floorpan -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
