Removing FLOORPAN

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

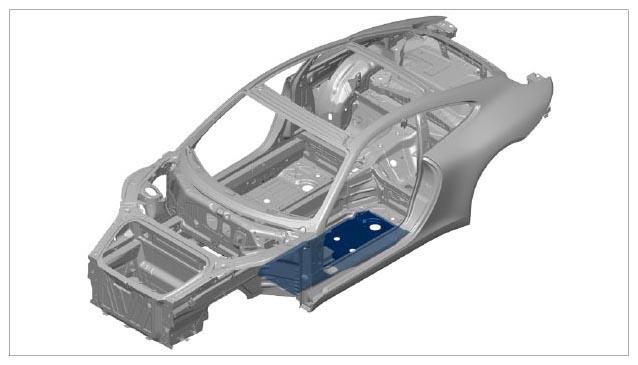

Fig 1: Floorpan Section Component Location (Except Carrera "Edition", Carrera Cabriolet "Edition", Carrera 4 "Edition", Targa 4, Targa 4S, Targa 4 Gts, Carrera 4 Cabriolet "Edition")

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

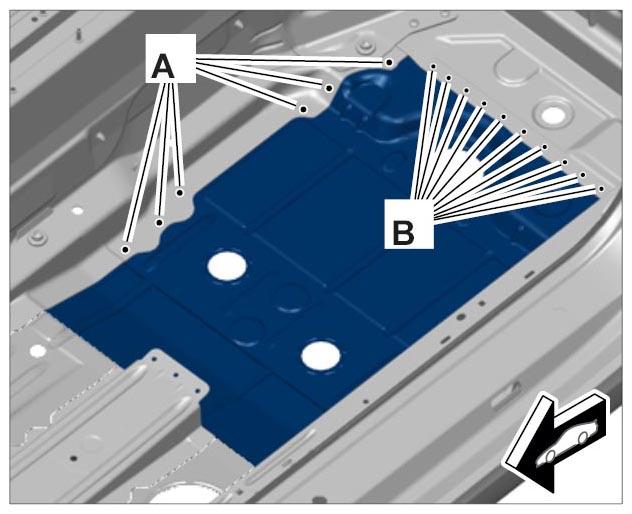

1. Drill through punch rivets -A-  using a → Diameter: 6.5 mm  .
   1. 1.1. Drill out clinch points -B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

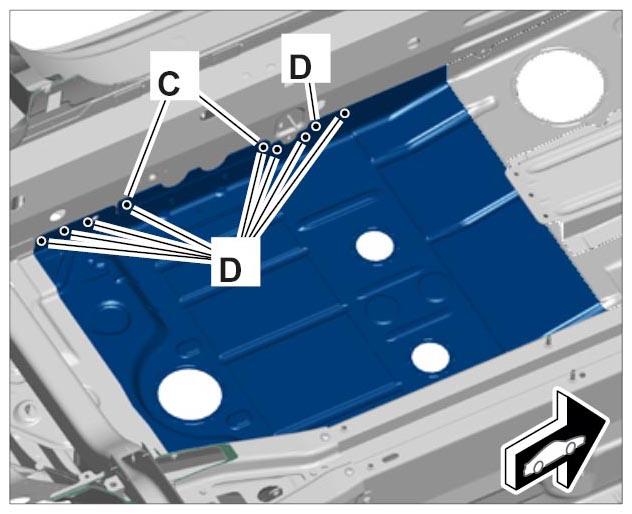

2. Drill through punch rivets -C-  using a → Diameter: 6.5 mm  .
   1. 2.1. Drill out clinch points -D-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

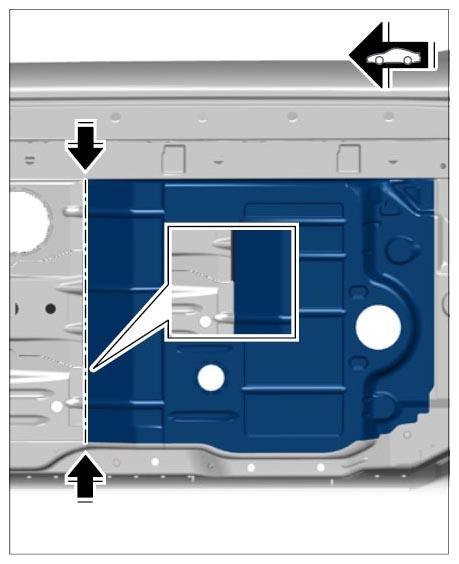

3. Mark and make cut -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

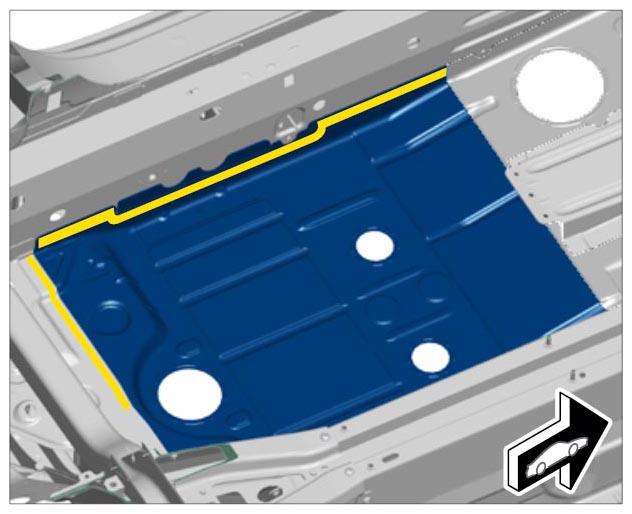

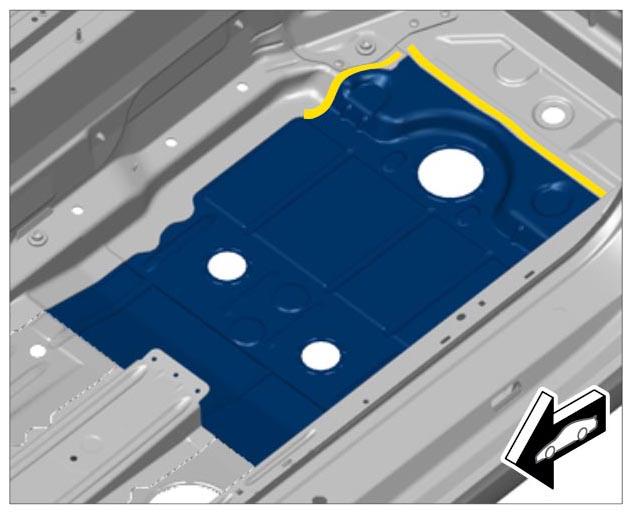

4. Heat the bonding surfaces.
   1. 4.1. Remove floorpan section.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
