Installing FLOORPAN

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

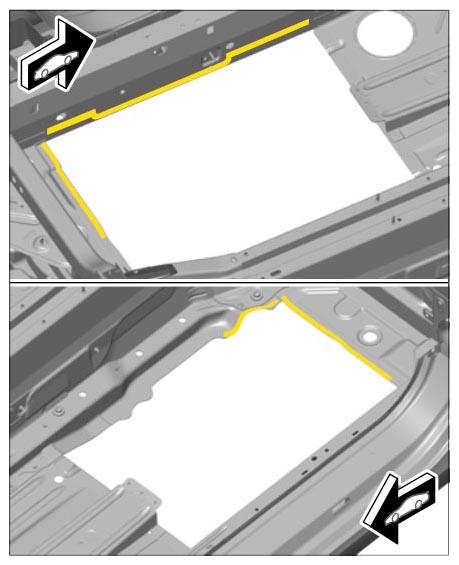

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Install floorpan section.

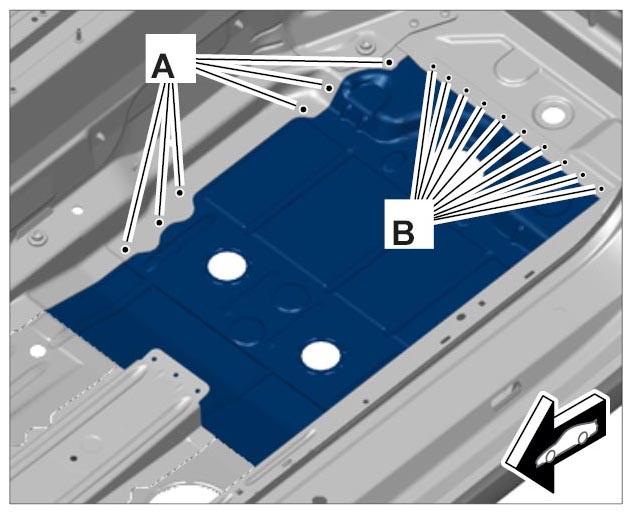

   1. 2.1. Rivet in area -A; B-  . → BLIND RIVET 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

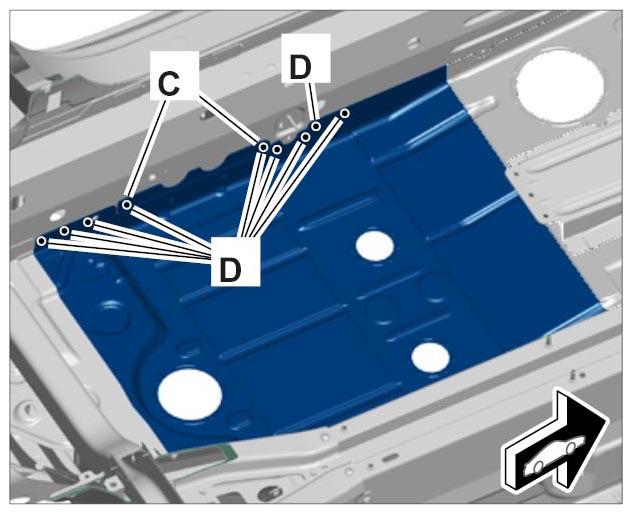

3. Rivet in area -C;D-  . → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Install floorpan section.
   1. 2.1. Rivet in area -A; B-  . → BLIND RIVET 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Rivet in area -C;D-  . → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
