Installing FLOORPAN

  1. Install floorpan.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.

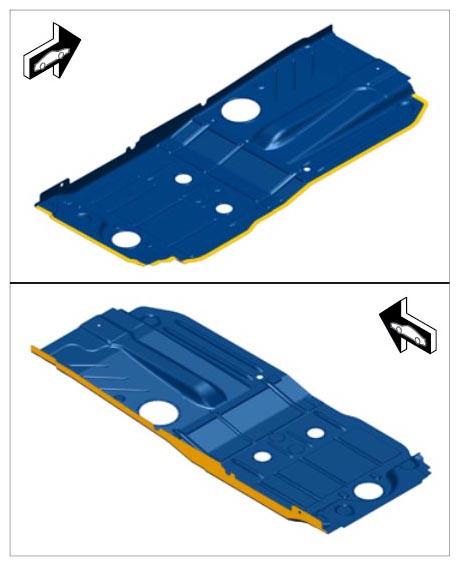

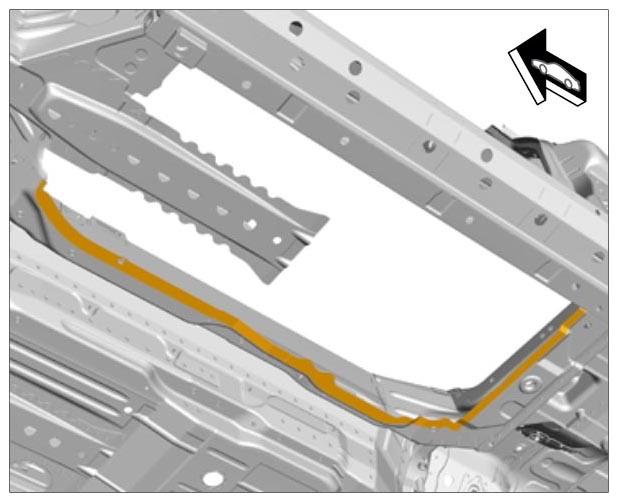

    1. 1.1. Apply adhesive. → Application depth: 3 mm

      Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

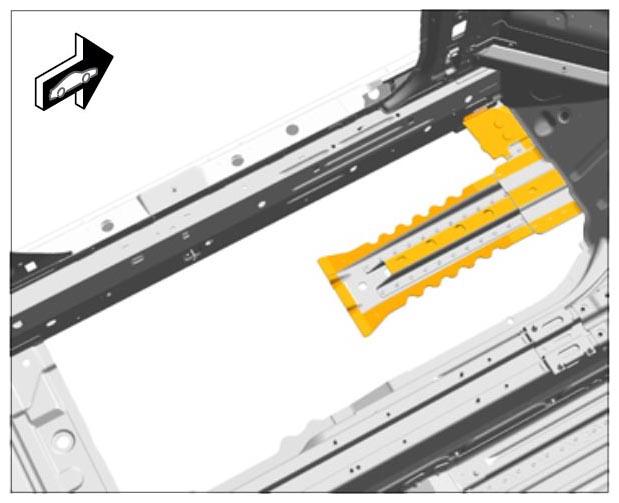

      G09993631Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      G09993632Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      G09993633Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Rivet floorpan in area -A and C-  from the inside. → BLIND RIVET 999.190.227.01
    3. 1.3. Rivet floorpan in area -B-  from the inside. → BLIND RIVET 999.190.229.01

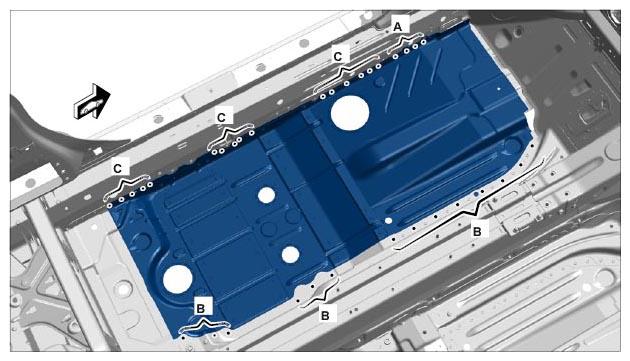

      G09993634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

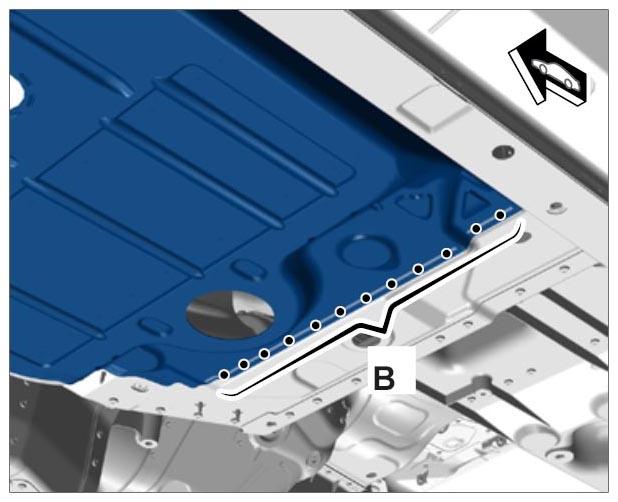

    4. 1.4. Rivet floorpan in area -B-  from below. → BLIND RIVET 999.190.229.01
      G09993635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install firewall section.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.

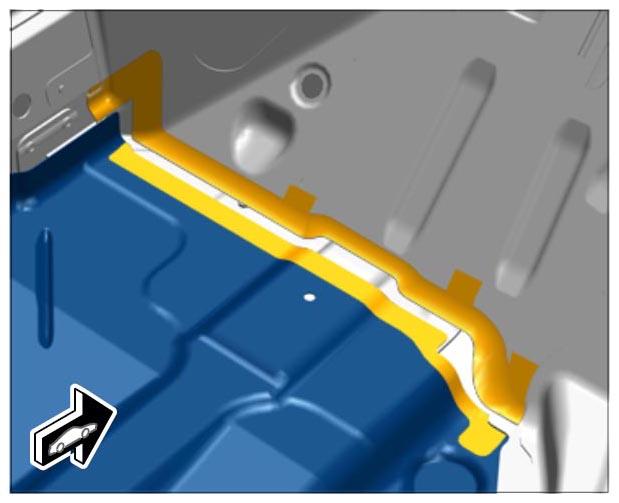

    1. 2.1. Apply adhesive. → Application depth: 3 mm

      Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

      G09993636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

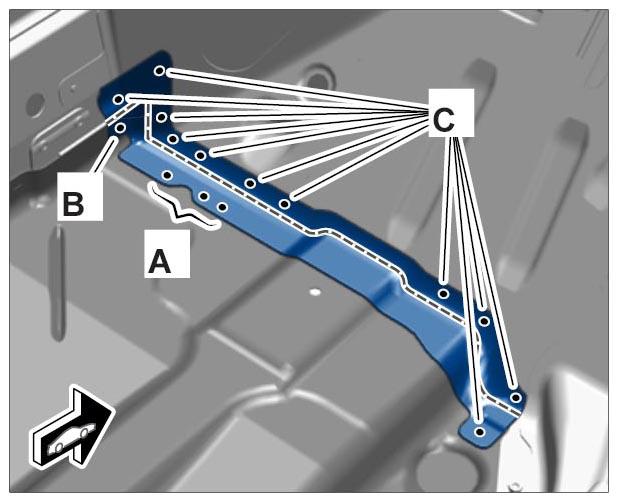

    2. 2.2. Rivet firewall section in area -A and C-  . → BLIND RIVET 999.190.229.01
    3. 2.3. Rivet firewall section in area -B-  . → BLIND RIVET 999.190.227.01
      G09993637Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install connection bracket.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
    1. 3.1. Apply adhesive. → Application depth: 3 mm

      Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    2. 3.2. Rivet connection bracket in area -A-  . → BLIND RIVET 999.190.229.01

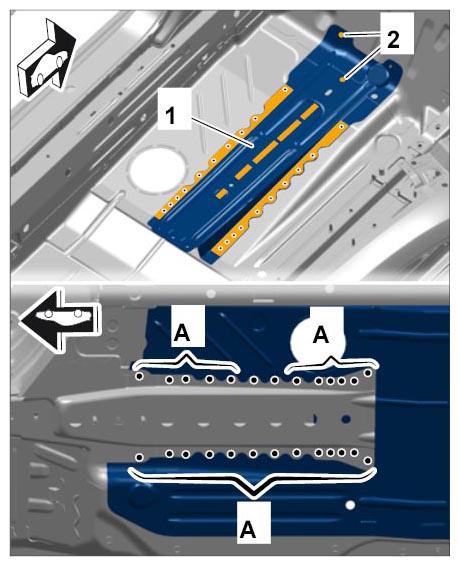

    3. 3.3. Screw flow drill screws -2-  into the connection bracket -1-  .
      G09993638Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install mounting plate for roll-over bar on the inside.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
    1. 4.1. Apply adhesive. → Application depth: 3 mm

      Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

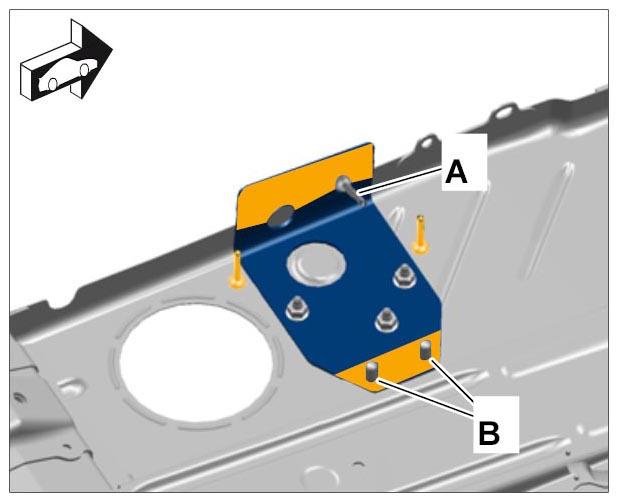

    2. 4.2. Rivet mounting plate in area -A and B-  . → BLIND RIVET 999.190.229.01
      G09993639Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install Z mounting plate for roll-over bar at the bottom.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.
    1. 5.1. Apply adhesive. → Application depth: 3 mm

      Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

    2. 5.2. Rivet Z mounting plate for roll-over bar at the bottom in area -A-  . → BLIND RIVET 999.190.229.01
      G09993640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

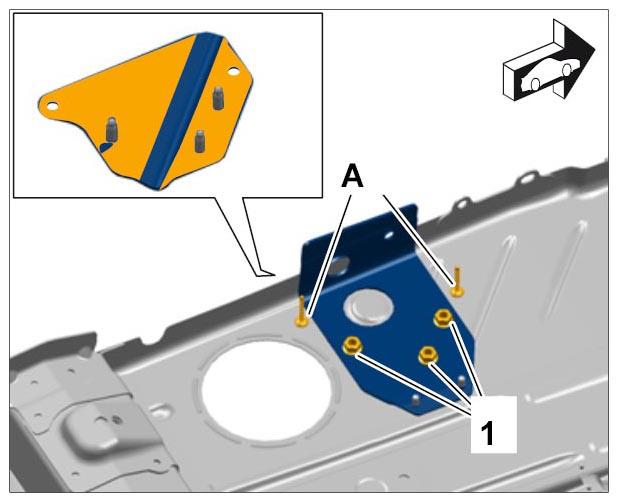

    3. 5.3. Secure Z mounting plate for roll-over bar at the bottom to the mounting plate using nuts -1-  .
