Removing FLOORPAN

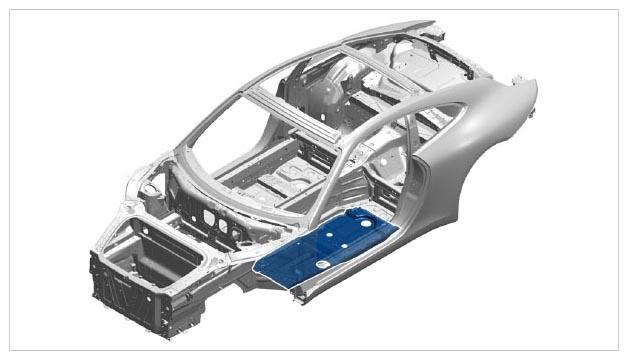

Fig 1: Floorpan Component Location (Except Carrera "Edition", Carrera Cabriolet "Edition", Carrera 4 "Edition", Carrera 4 Cabriolet "Edition")

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

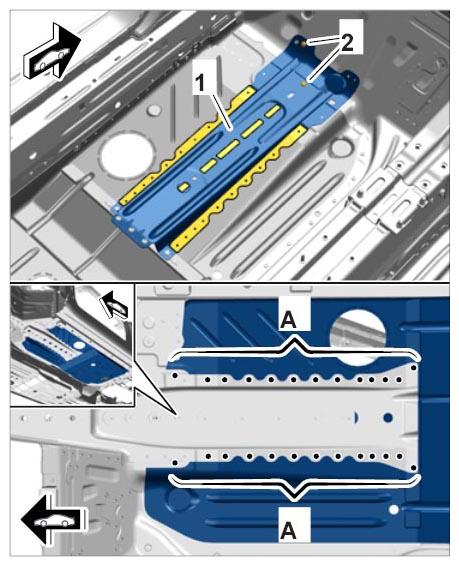

Remove connection bracket.

1.4. Remove connection bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

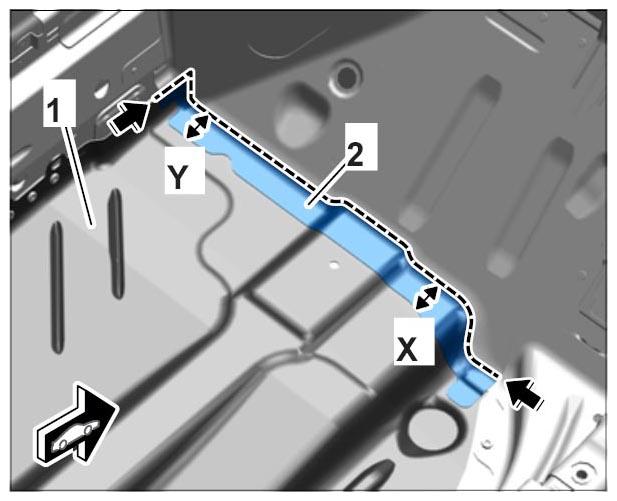

Mark and make cuts. → Distance: 35 mm → Distance: 35 mm
Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Make a cut -arrows- as shown along the beading in the firewall plate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Drill through punch rivets using a → Diameter: 6.6 mm .

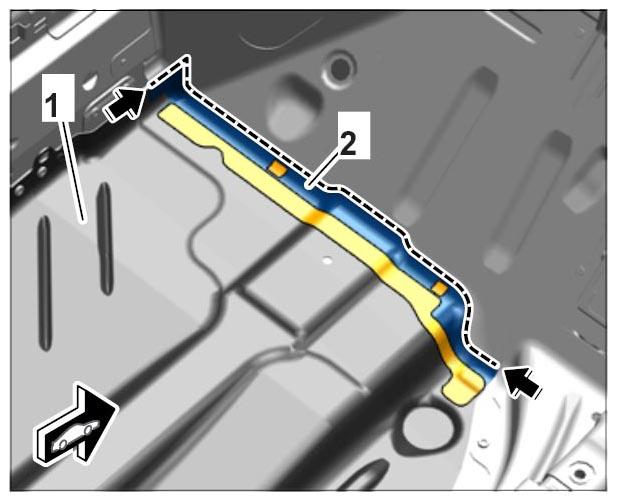

Heat the marked bonding areas of the lower firewall section -2- .

4.1. Remove lower firewall section -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

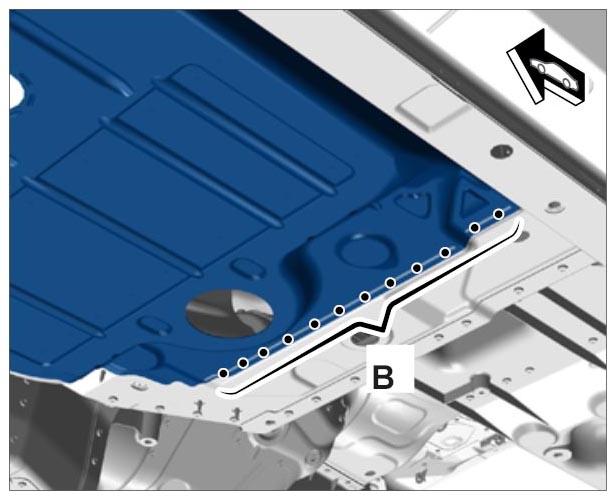

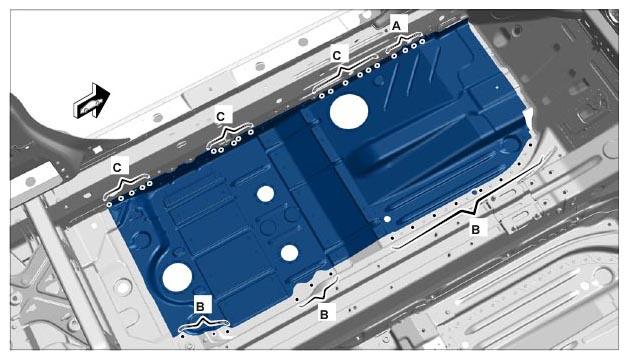

Drill through punch rivets on the floorpan using a → Diameter: 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

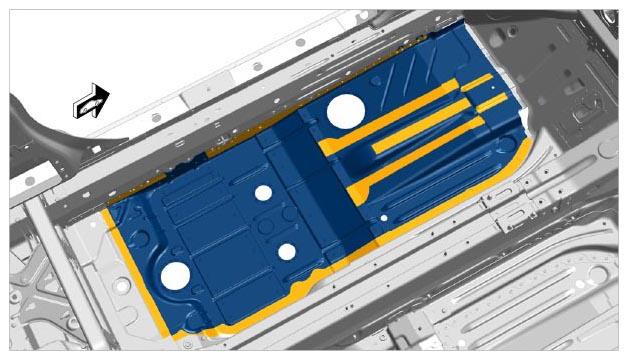

Heat bonding areas.

6.1. Remove floorpan by pulling it up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
