Preparing FLOORPAN For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

Information

• The floorpan and seat cross member are fitted in and secured together.
• Holes for rivets are drilled through both components.

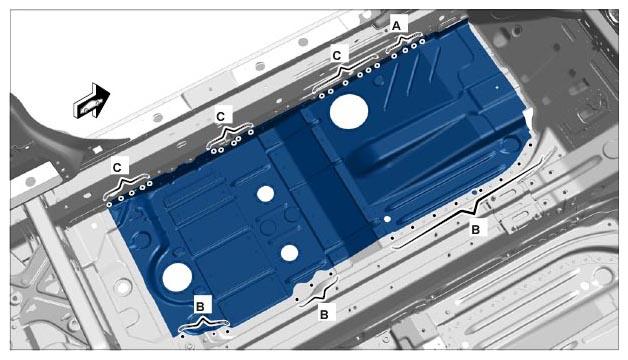

1. Fit in floorpan together with the seat cross member and secure them to the body.

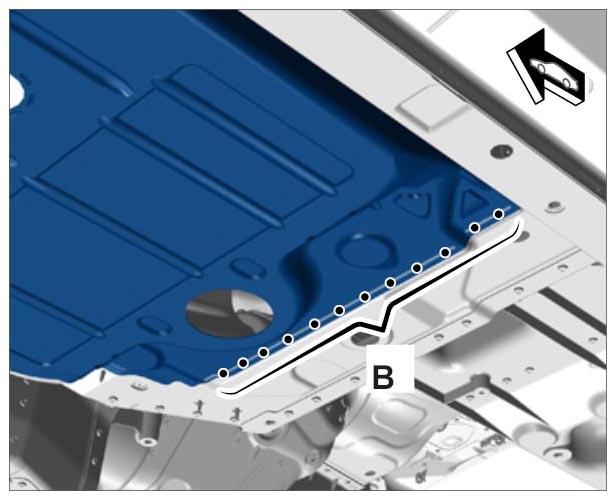

   1. 1.1. Drill holes for rivets -A, B and C-  through the existing holes. → Diameter: 6.6 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

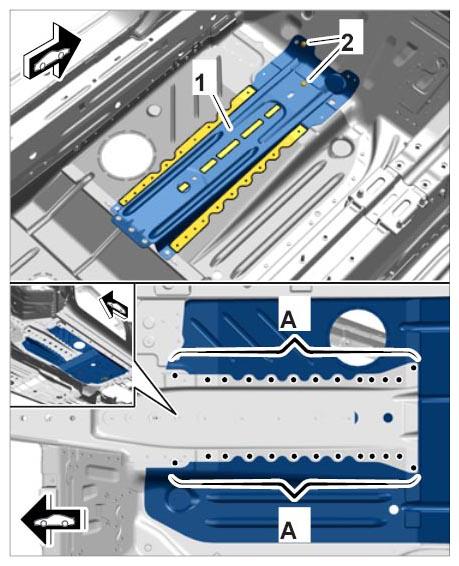

2. Fit in and secure the connection cross member.
   1. 2.1. Drill holes for rivets -A-  through the existing holes. → Diameter: 6.6 mm
   2. 2.2. Prepare connection cross member for bonding and riveting.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

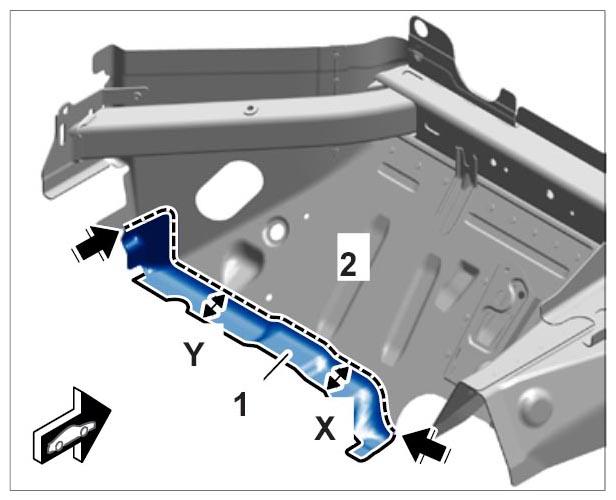

3. Cut new lower firewall -arrows-  .
   1. 3.1. Use old lower firewall as a template and position it in area -1-  .
   2. 3.2. Cut lower firewall section with an overlap of 1 cm in area -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

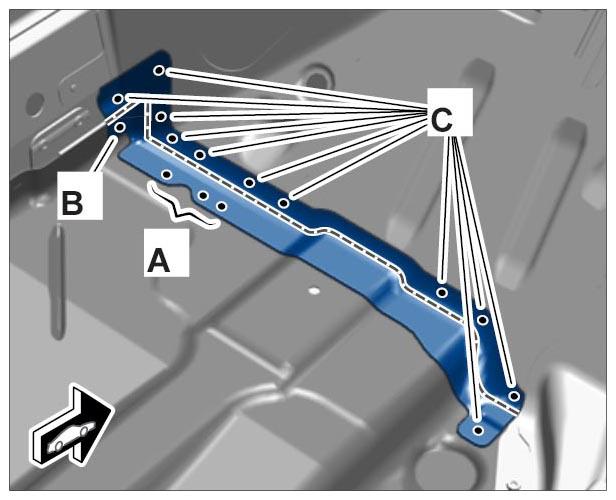

4. Fit in lower firewall section and secure it to the body. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") - section on "Preparing".
   1. 4.1. Drill holes for rivets in area -A; B; C-  . → Diameter: 6.6 mm
   2. 4.2. Remove firewall section again.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

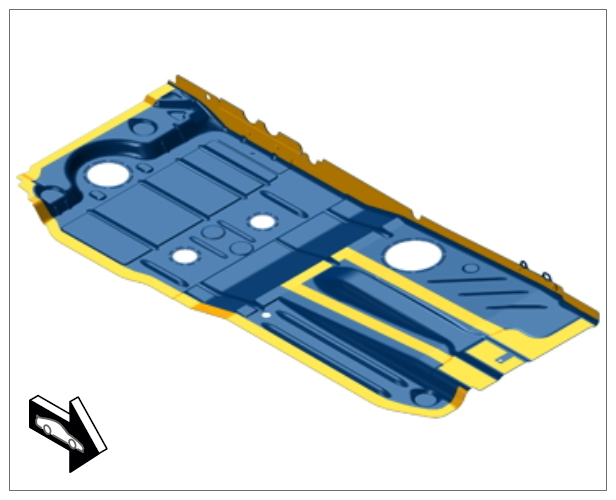

5. Prepare the marked connection areas for bonding and welding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

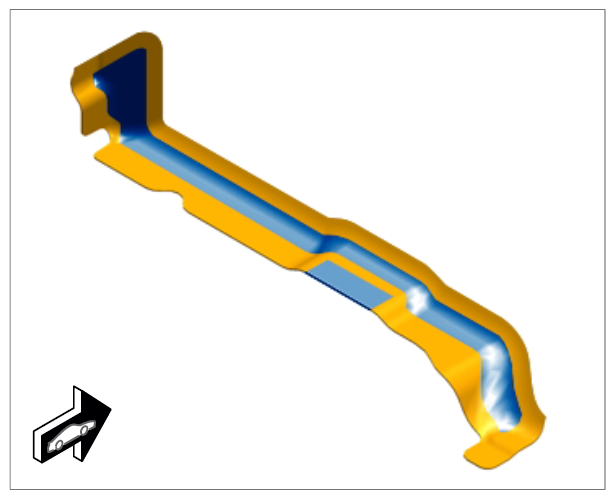

6. Prepare connection areas of lower firewall section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
