Installing FLOORPAN

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

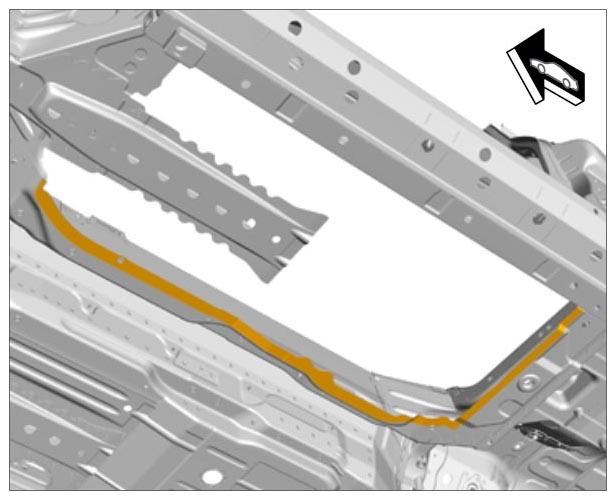

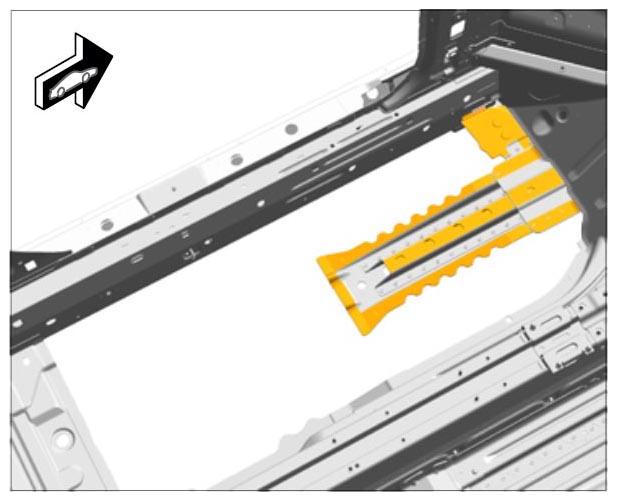

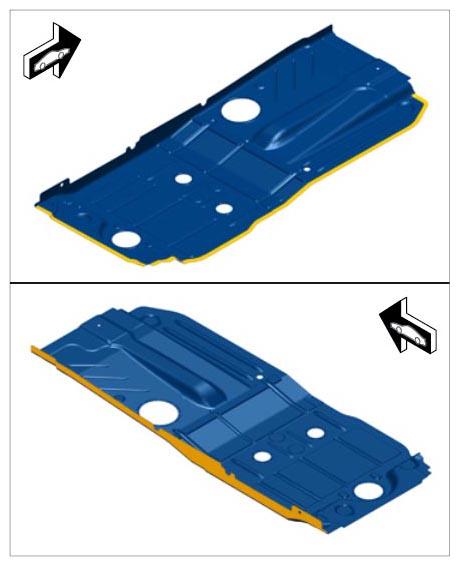

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", CARRERA 4 CABRIOLET "EDITION") .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

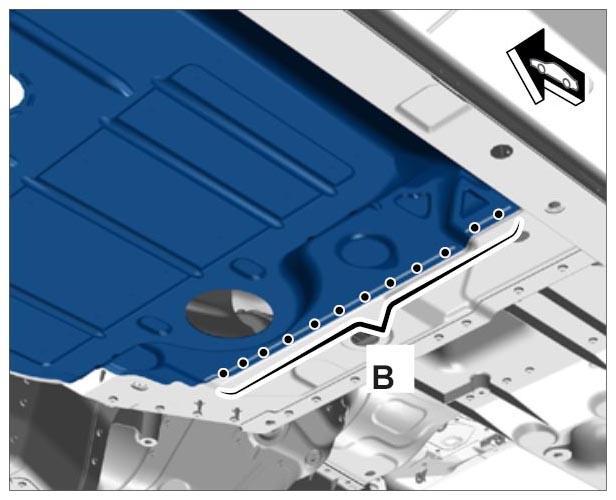

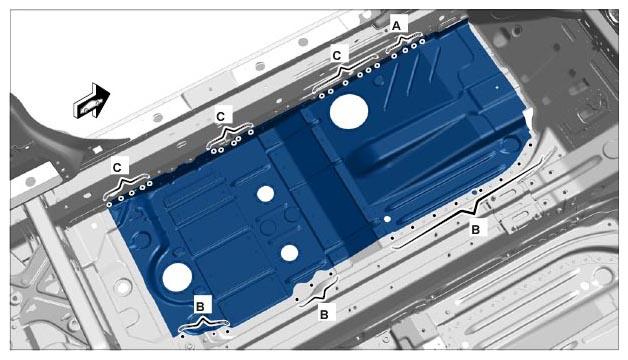

2. Rivet in floorpan.
   1. 2.1. Rivet in area -A;C-  . → BLIND RIVET 999.190.227.01
   2. 2.2. Rivet in area -B-  . → BLIND RIVET 999.190.229.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

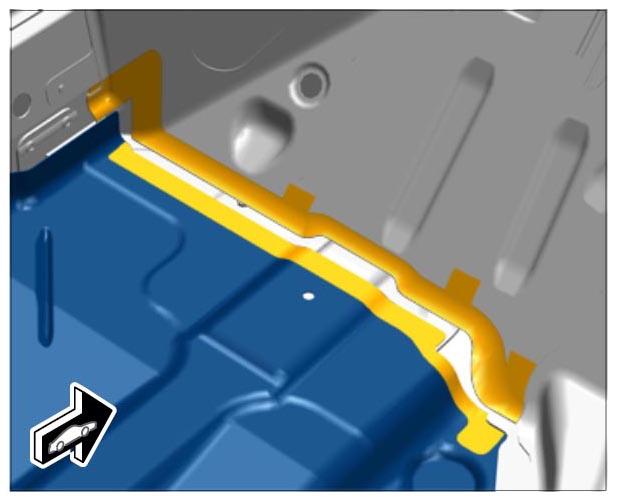

3. Apply adhesive.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

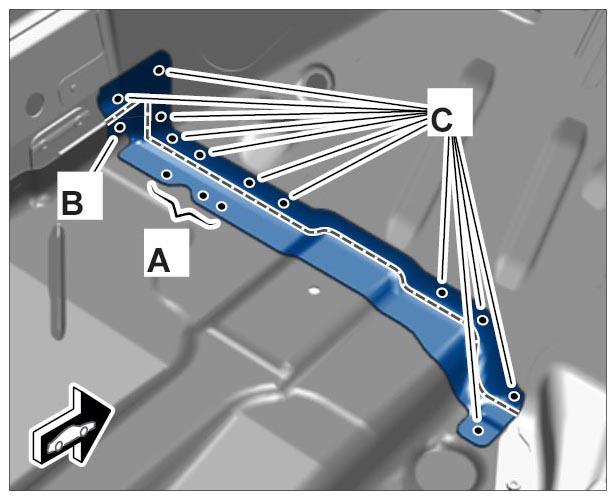

4. Install firewall section.
   1. 4.1. Rivet in area -A;C-  . → BLIND RIVET 999.190.229.01
   2. 4.2. Rivet in area -B-  . → BLIND RIVET 999.190.227.01

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

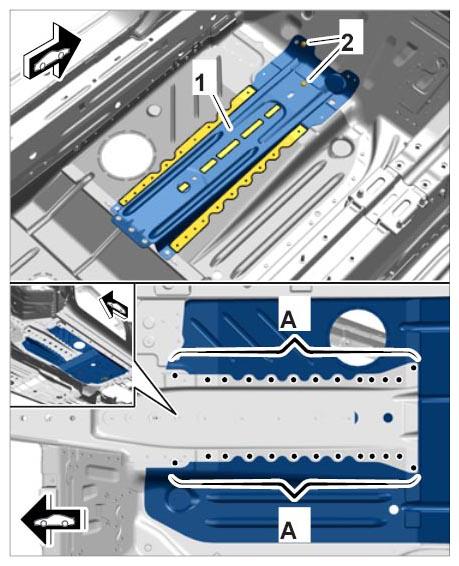

5. Install connection bracket.
   1. 5.1. Apply adhesive.
   2. 5.2. Rivet in area -A-  . → BLIND RIVET 999.190.229.01
   3. 5.3. Screw in flow drill screws in area -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
