WM 516819 Removing And Installing Dashboard Bracket (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Heating/fresh-air unit to dashboard bracket
Fastening nut, M6
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

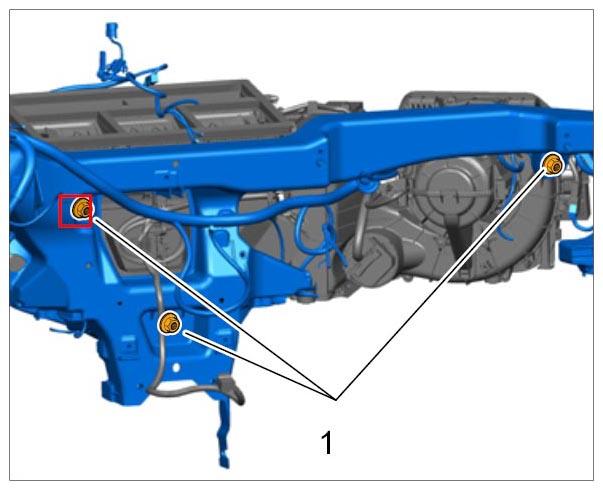

Fastening nuts for heating/fresh-air unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
