Removing Dashboard Bracket

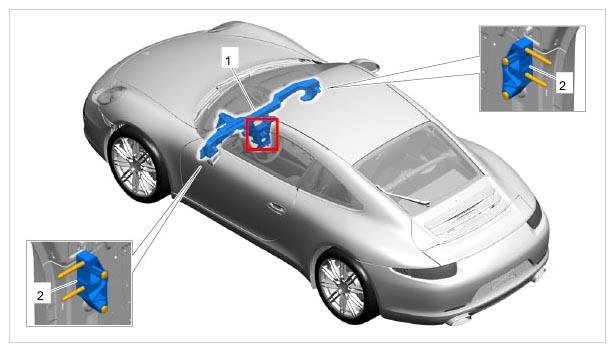

Fig 1: Dashboard Bracket Component Location (Except Carrera "Edition", Carrera Cabriolet "Edition", Carrera 4 "Edition", Carrera 4 Cabriolet "Edition")

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard bracket
Holder for dashboard bracket

Disconnect wire harness for dashboard.

1.1. Disconnect plug connection for dashboard at connection point on left A-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

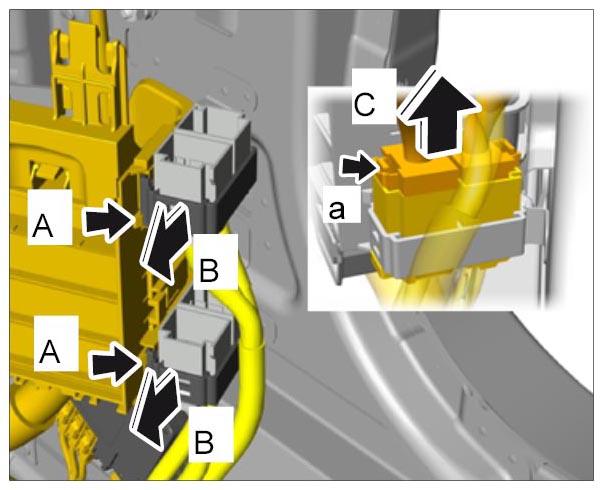

1.1.1. Release plug connections at the left fuse box -A- and remove them -B- .
1.1.2. Release plug connections -a- and pull them off -C- .

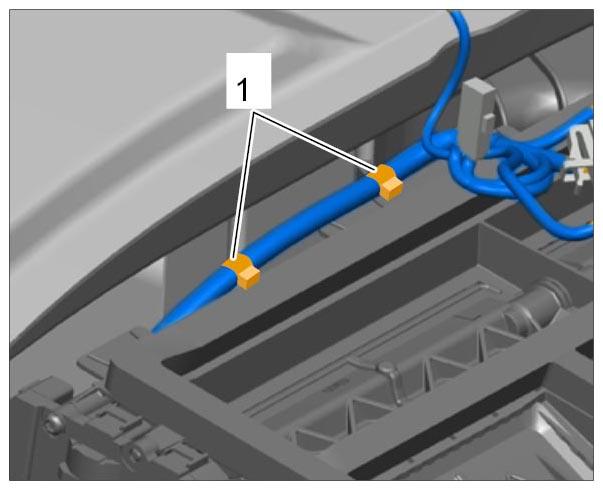

1.2. Unclip fixing clips -1- for wire harness at the heating/fresh-air unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1.3. Disconnect plug connection for dashboard at connection point on right A-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

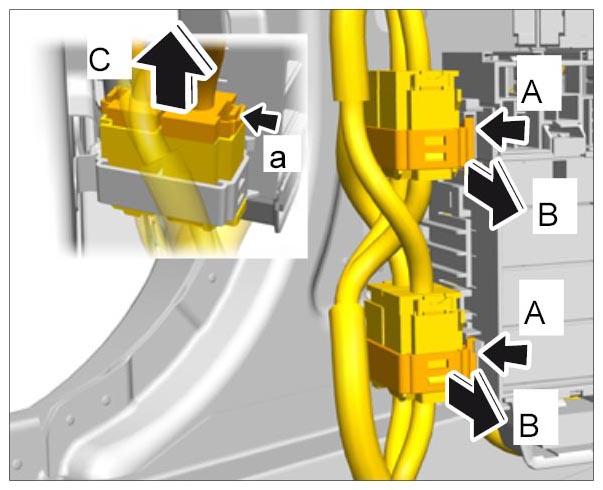

1.3.1. Release plug connections at the left fuse box -A- and remove them -B- .
1.3.2. Release plug connections for the dashboard wire harness -a- and pull them off -C- .

1.4. Disconnect plug connection for blower power supply.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

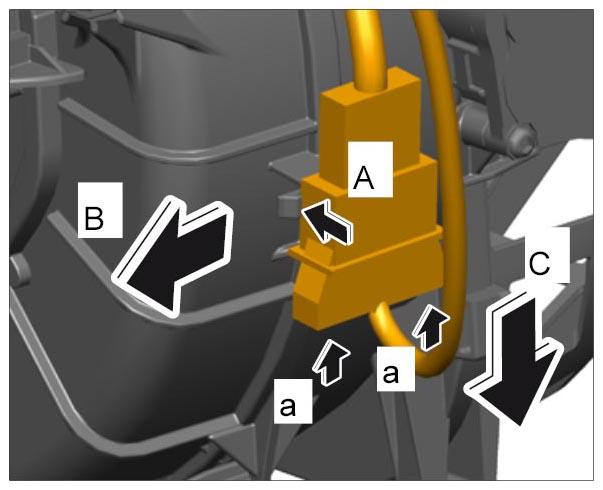

1.5. Release plug connection -A- and disconnect it -B- from the heating/fresh-air unit.
1.6. Release plug connection at the two locking lugs -a- and pull it off -C- .

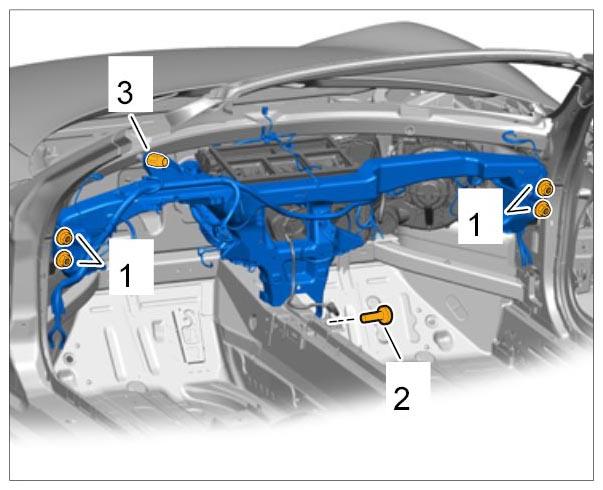

Loosen mounting for dashboard bracket.

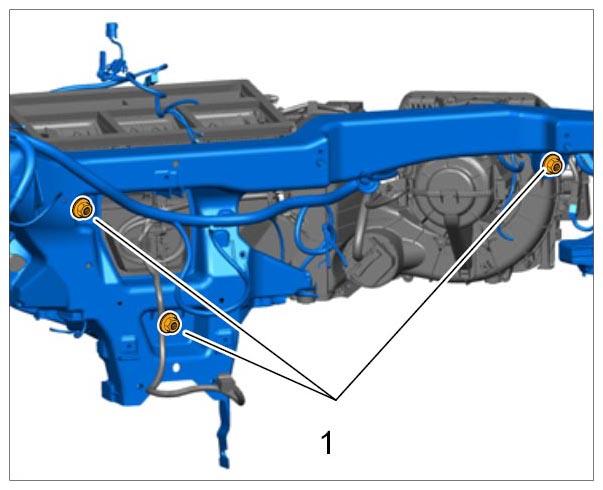

2.1. Unscrew fastening nuts -1- for the heating/fresh-air unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2.2. Unscrew the bottom fastening screw at the right on the tunnel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2.3. Unscrew the outer fastening screw -3- .
2.4. Unscrew the fastening nuts at the sides -1- .
2.5. Swivel the dashboard bracket out towards the passenger compartment.
