Removing Side Member Reinforcement

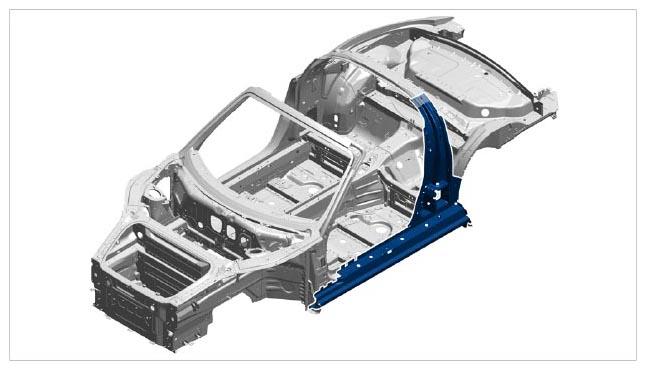

Fig 1: Side Member Reinforcement Component Location
G09993507Courtesy of PORSCHE CARS NORTH AMERICA, INC.

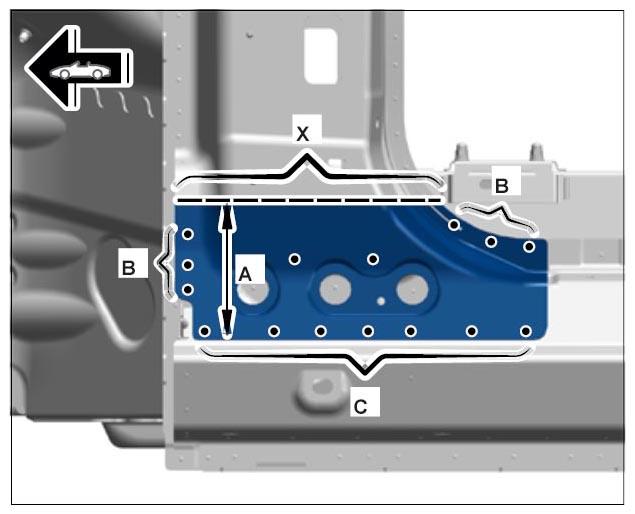

  1. Remove A-pillar section.
    1. 1.1. Cut A-pillar section to dimension -A-  at the marked area -X-  .

      → Dimension - A -: 120 mm

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

    2. 1.2. Drill out spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
    3. 1.3. Heat bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119
    4. 1.4. Remove A-pillar section. Make sure that the section of the A-pillar does not lose its shape so that it can be re-used.
      G09993508Courtesy of PORSCHE CARS NORTH AMERICA, INC.

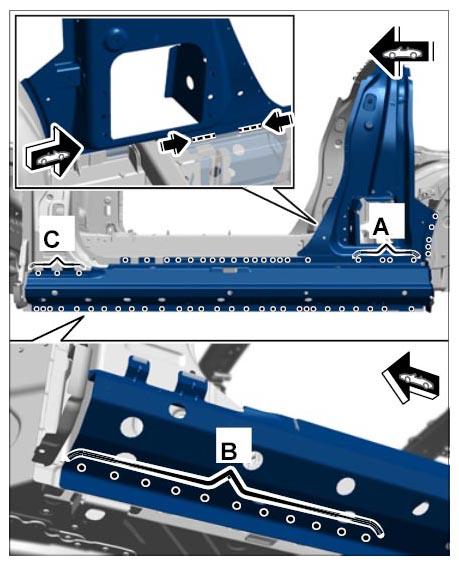

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

  2. Drill out spotwelds using spotweld drill  .
    1. 2.1. Grind down welded seams -arrows-  .
      G09993509Courtesy of PORSCHE CARS NORTH AMERICA, INC.

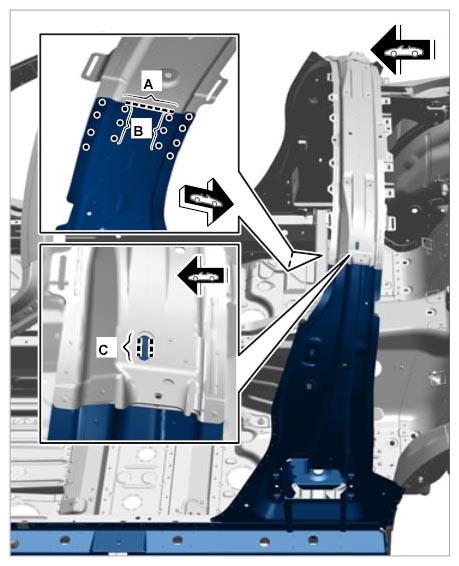

      Information

      Drill out the connection point on one side only. Do not damage the plate underneath.

  3. Drill out spotwelds using spotweld drill  .
    1. 3.1. Grind down welded seam -A-  .

      Information

      Drill out spotwelds B  through two plate thicknesses.

    2. 3.2. Drill through spotwelds in area -B-  using spotweld drill Nr.129  .
      G09993510Courtesy of PORSCHE CARS NORTH AMERICA, INC.

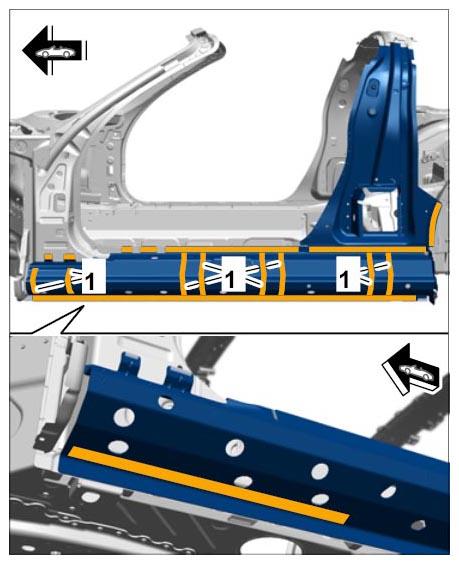

  4. Heat the marked bonding areas.
    1. 4.1. Heat the bonding surfaces -1-  of the reinforcements from inside and loosen using a body chisel if necessary.
    2. 4.2. Remove side member reinforcement.
      Fig 2: Side Member Reinforcement Component Location
      G09993511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
