Preparing Connection Areas Of Body For Installing Outer Side Member

  1. Remove remaining pieces of overlap.
  2. Straighten connection areas of the body.
  3. Sand down burrs.
  4. Prepare connection areas for welding.

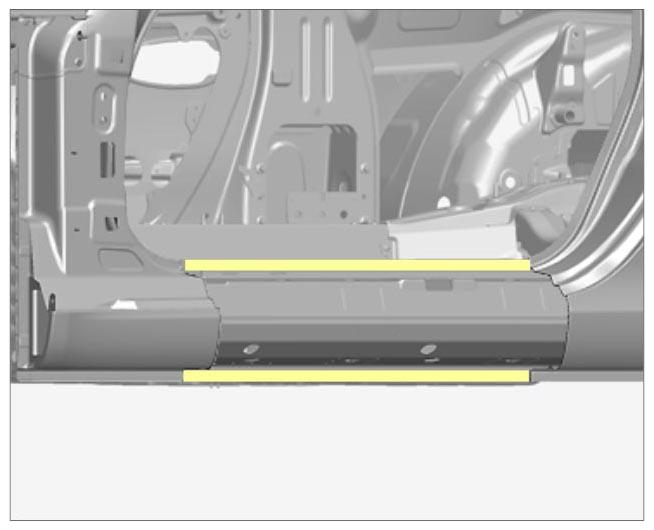

  5. Prepare connection areas in the marked areas for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
    G09993498Courtesy of PORSCHE CARS NORTH AMERICA, INC.
