Removing Outer Side Member

Information

Mark cut in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

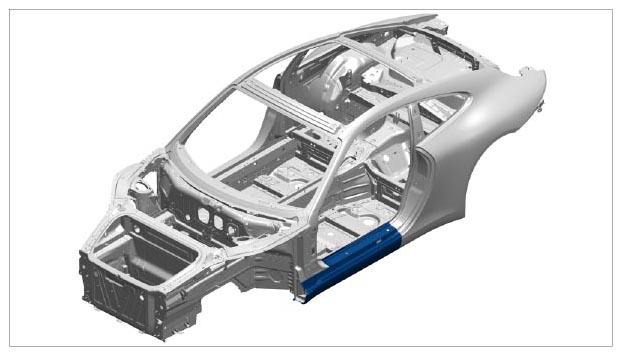

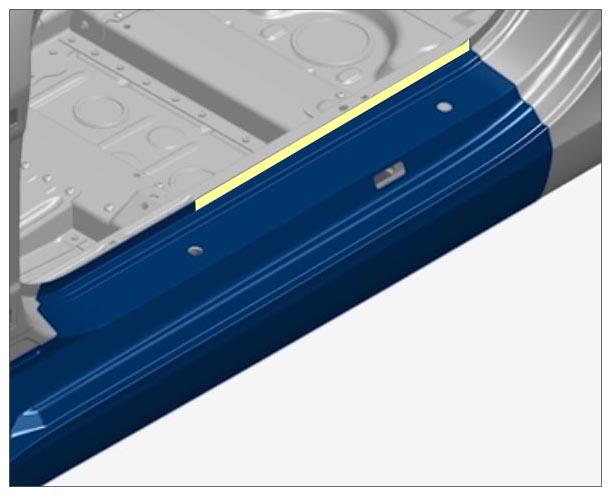

Fig 1: Outer Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

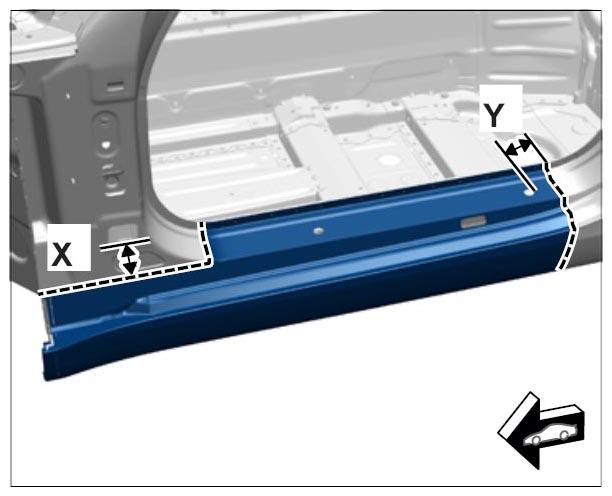

1. Cut outer side member. Special electric cutter - fine WE 1137 Pneumatic body saw PS 1 WE 1138
   1. 1.1. Cut through outer side member at the marked connection point -X-  using the oscillating body saw.

      → Gap: 60 mm

   2. 1.2. Cut through outer side member at the marked connection point -Y-  using the oscillating body saw.

      → Gap: 120 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

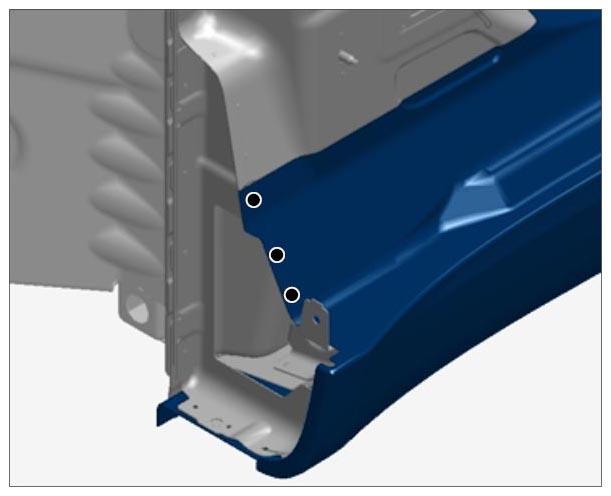

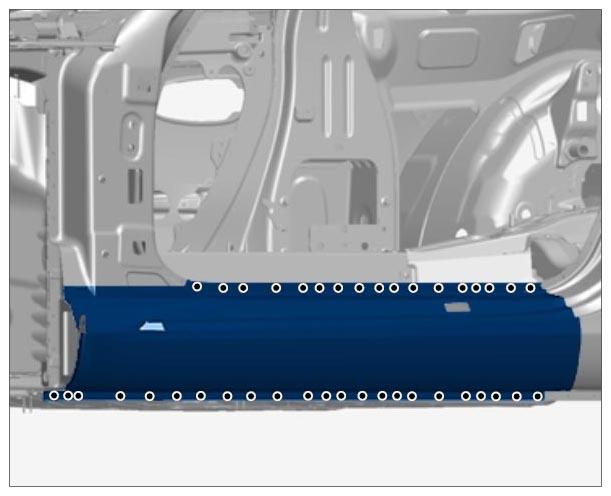

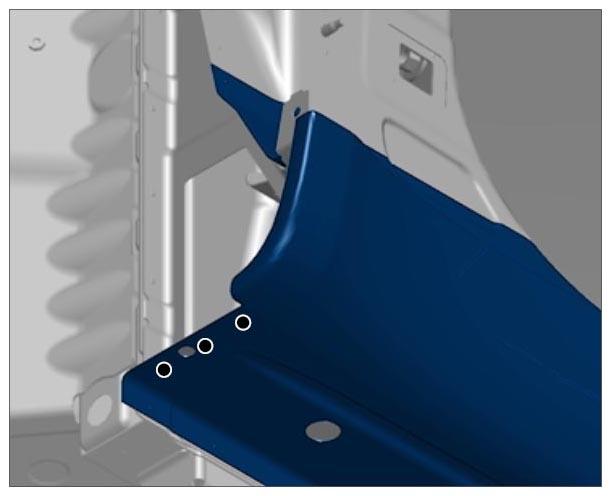

2. Mill off spotwelds. Spotweld drill bit Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

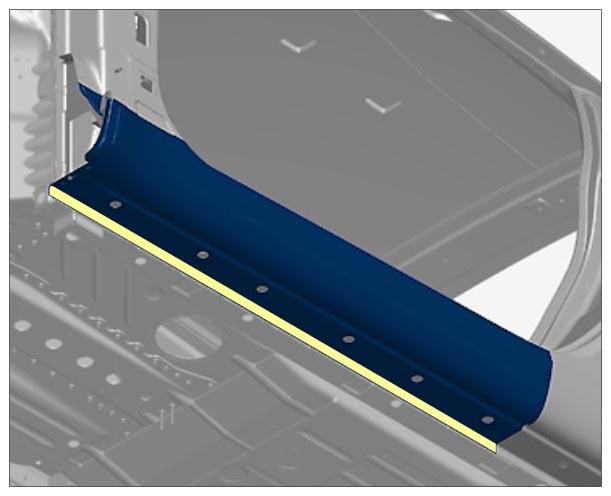

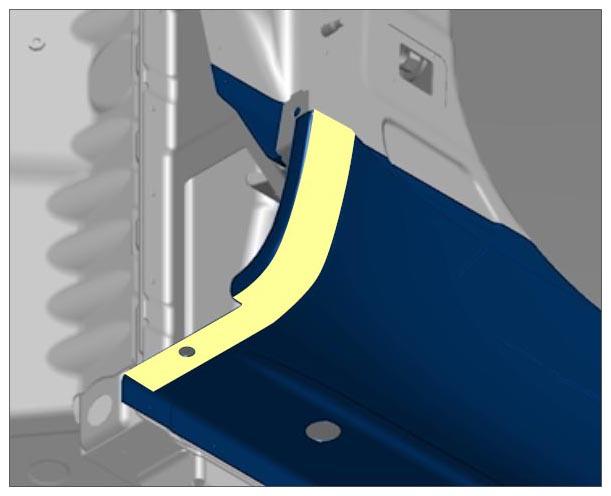

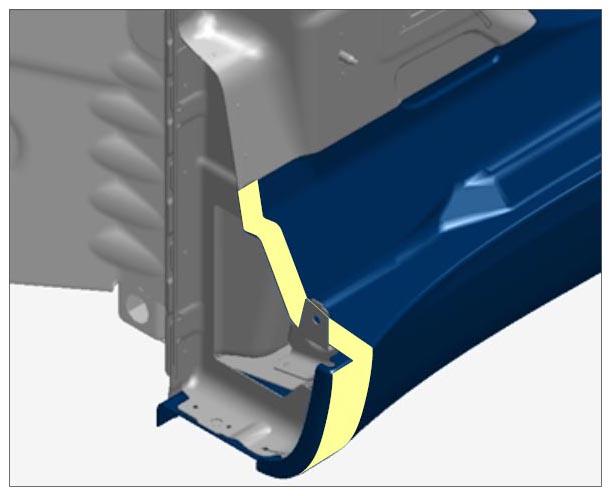

3. Heat up bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Remove side member.
