Fitting Outer Side Member And Preparing For Installation

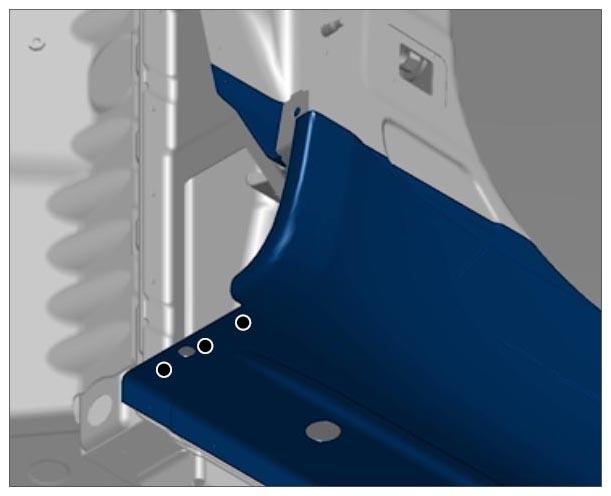

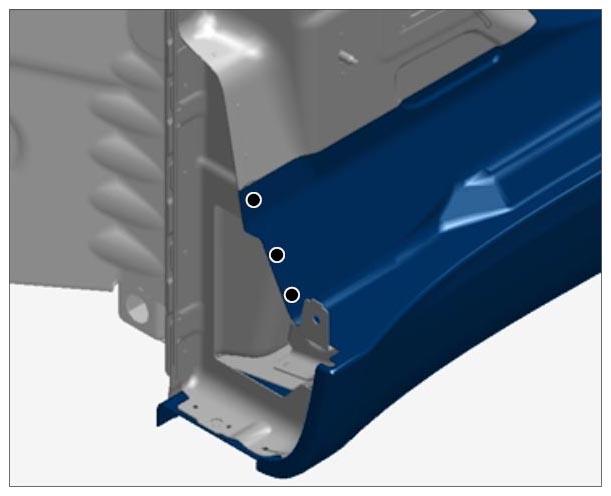

Mill off spotwelds on the separator from the inside. Pneumatic spot-weld remover, Vario drill WS 90 WE 1139

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

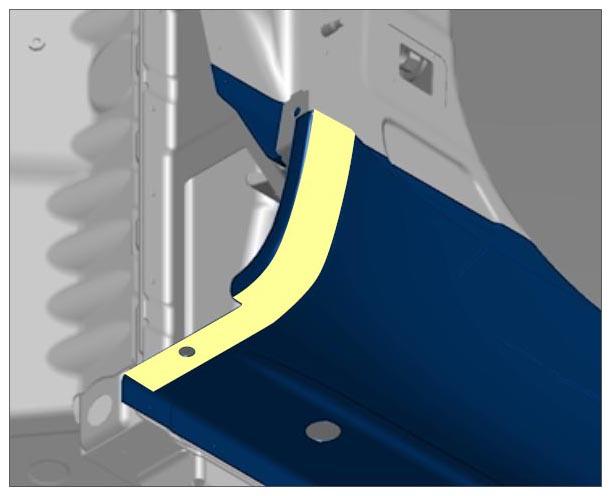

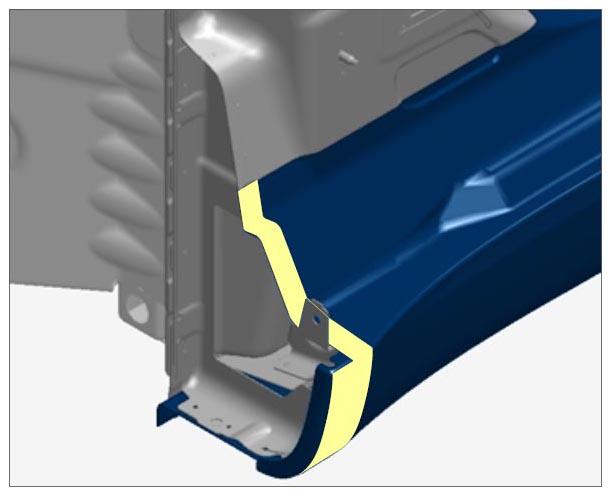

Heat up bonding areas. Hot-air blower, Leister-Electron/V.A.G. 1416 WE 1119

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the remaining part of the separator.
Fit outer side member to the body
1. 4.1. To complete the fit, install the doors and wings at the front and set the gap dimensions between the door and the front wing according to the respective adjustment values. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .
2. 4.2. Fix side member to the body.

Cut through outer side member

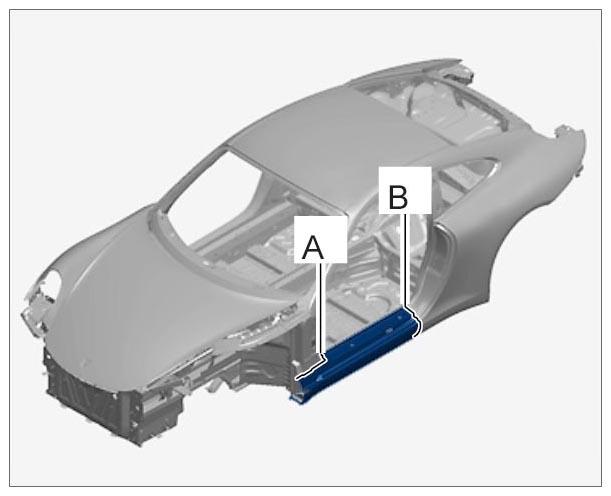

5.1. Make cuts -A- and -B- through the side member and body in the overlap areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side member.
Prepare connection areas for welding.

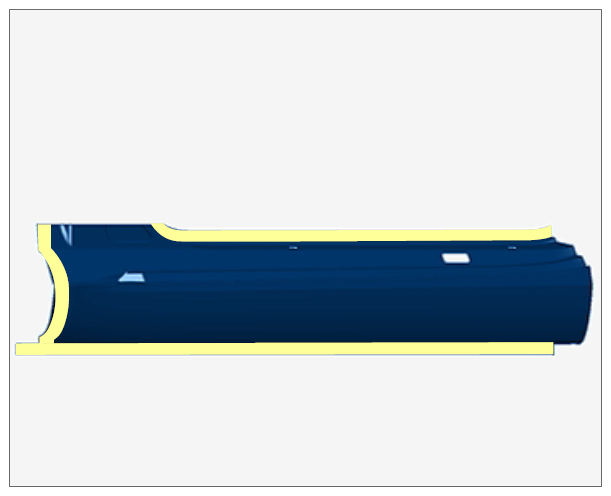

Prepare the side member in the marked areas for bonding. → WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
