Removing B-Pillar Reinforcement

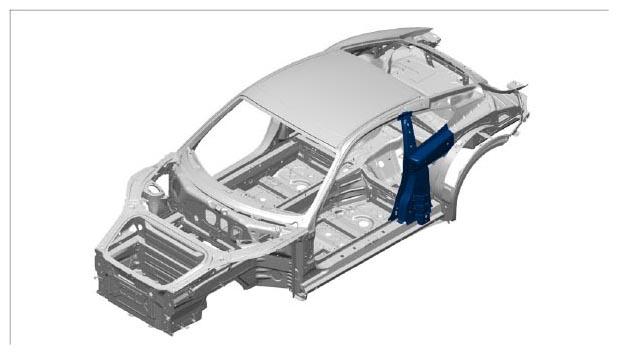

Fig 1: B-Pillar Reinforcement Component Location (except Carrera "Edition", Carrera Cabriolet "Edition", Carrera 4 "Edition", Targa 4, Targa 4S, Targa 4 Gts, Carrera 4 Cabriolet "Edition")

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A window will be cut into the outer B-pillar/roof pillar in the upper B-pillar area.
Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

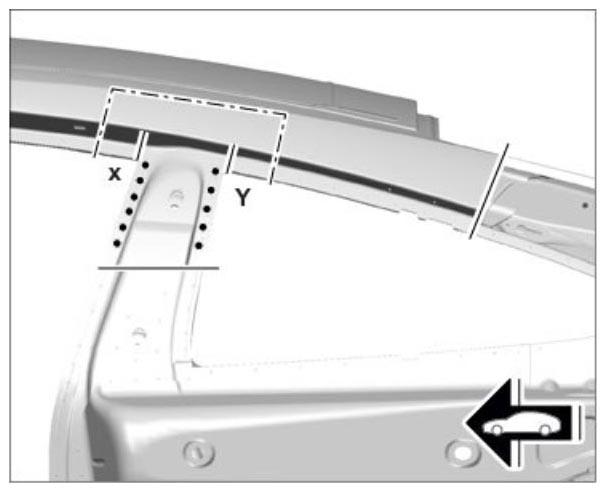

Mark and make cuts. → Distance: 40 mm → Distance: 30 mm

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

2.1. Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

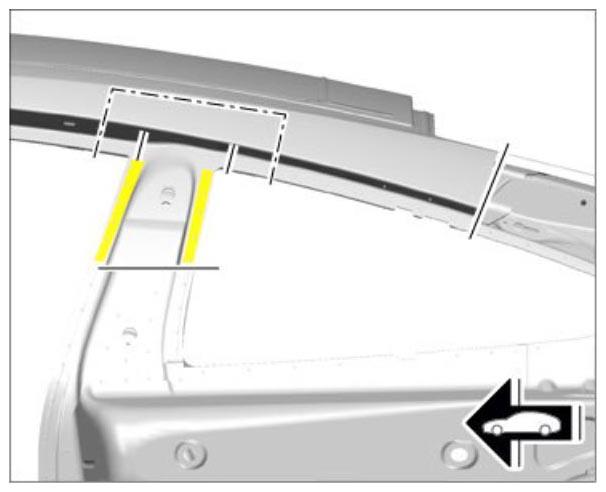

Heat the marked bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove roof pillar section.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.

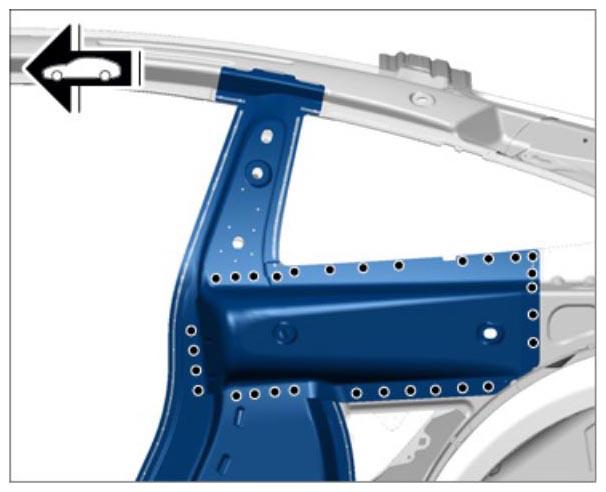

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

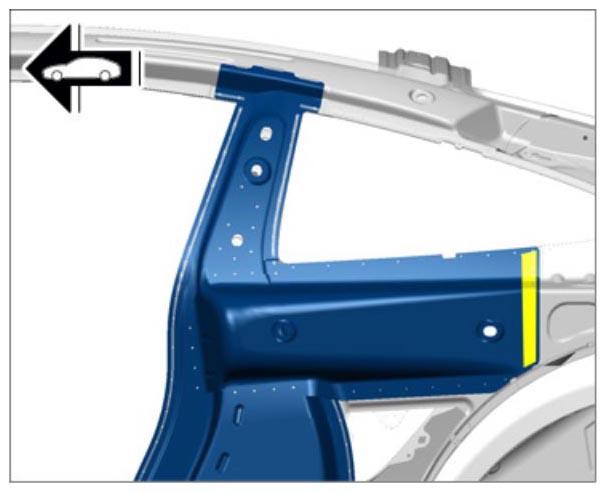

Heat the marked bonding areas.

6.1. Remove channel reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove inner side section.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

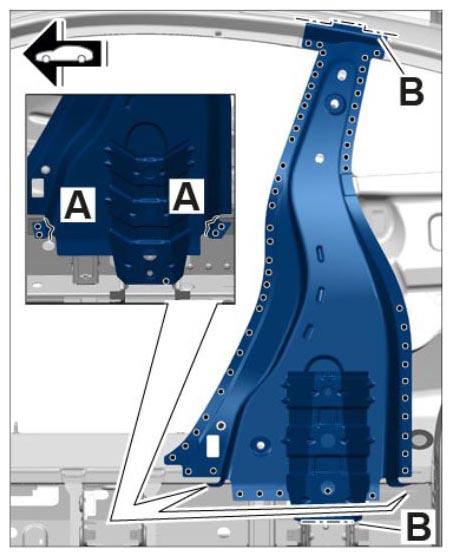

7.1. Drill out spotwelds using spotweld drill .
7.2. Drill out spotwelds in area -A- using spotweld drill .

7.3. Grind down welded seams in area -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

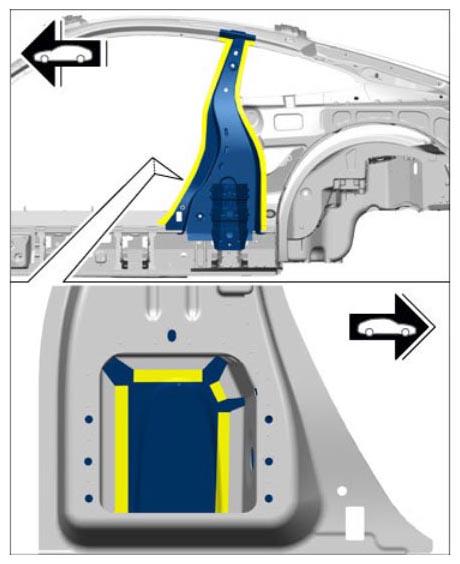

Heat the marked bonding areas.

8.1. Remove B-pillar reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
