Preparing Connection Areas Of The Body
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

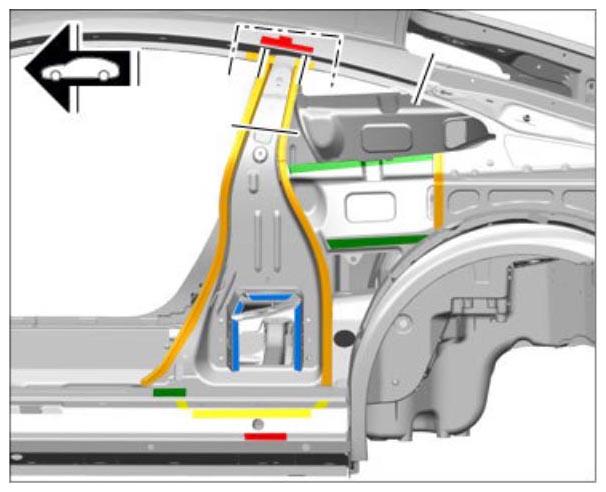

- Prepare marked areas for welding and bonding.
Green Resistance spot-welding Orange Bonding + resistance spot-welding Red Plug-welding/apply a full weld using inert gas without bonding Blue Bonding Yellow Riveting + bonding
