Removing A-Pillar

Information

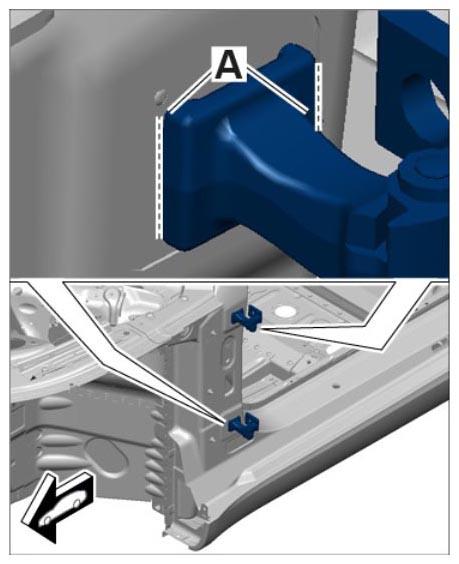

Drill out spotwelds A  through two plate thicknesses.

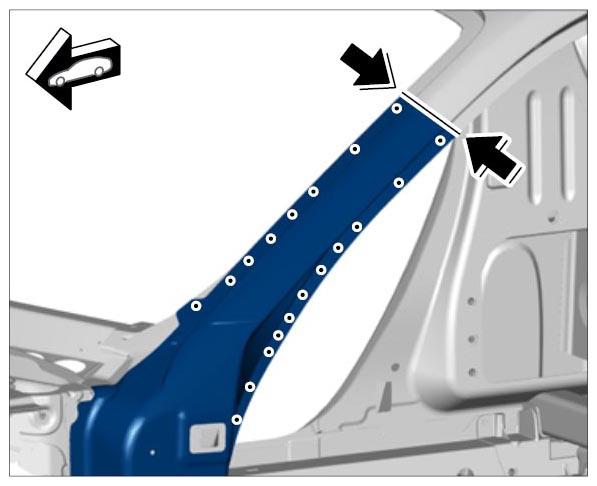

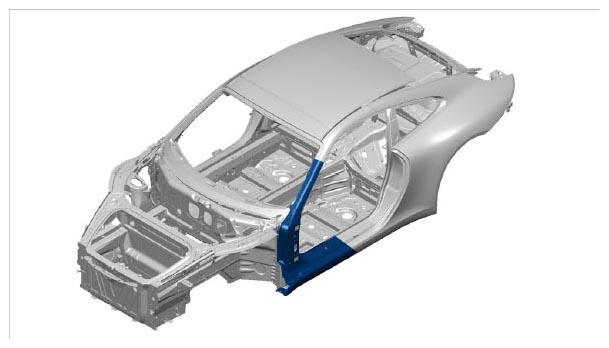

Fig 1: A-Pillar Component Location (Except Carrera "Edition", Carrera Cabriolet "Edition", Turbo S, Carrera 4 "Edition", Targa 4, Targa 4S, Targa 4 GTS, Carrera 4 Cabriolet "Edition", GT3 Rs)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

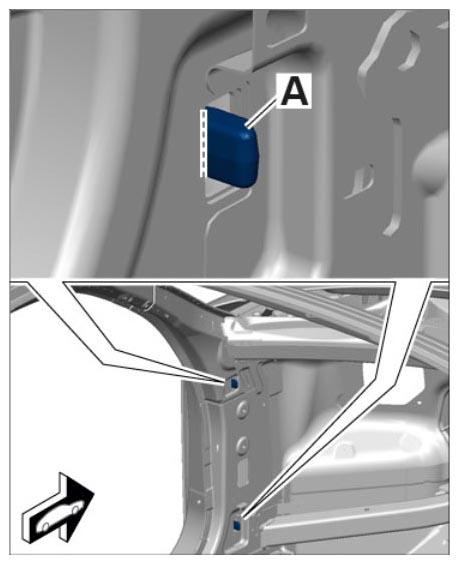

1. Grind down welded seams -A-  on the door hinges.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove supporting plate for longitudinal member for wheel housing.

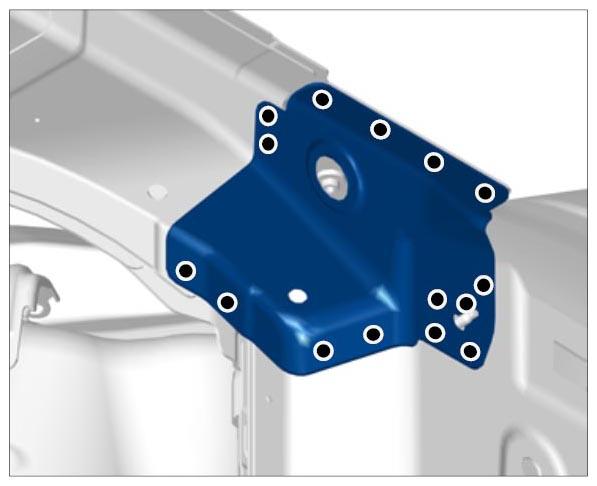

   1. 2.1. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

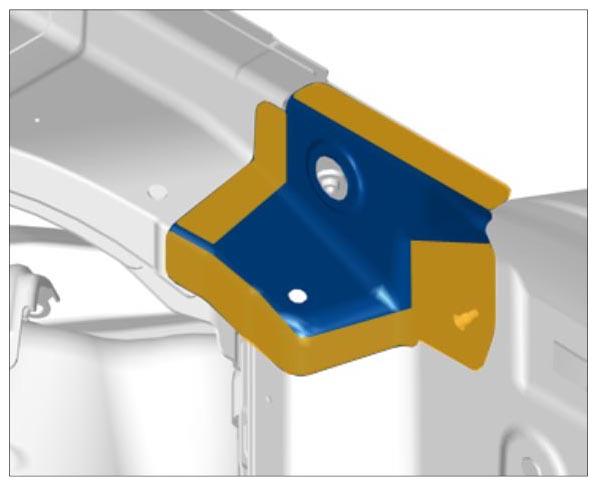

3. Heat bonding areas on supporting plate for longitudinal member for wheel housing.
   1. 3.1. Remove supporting plate for longitudinal member for wheel housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

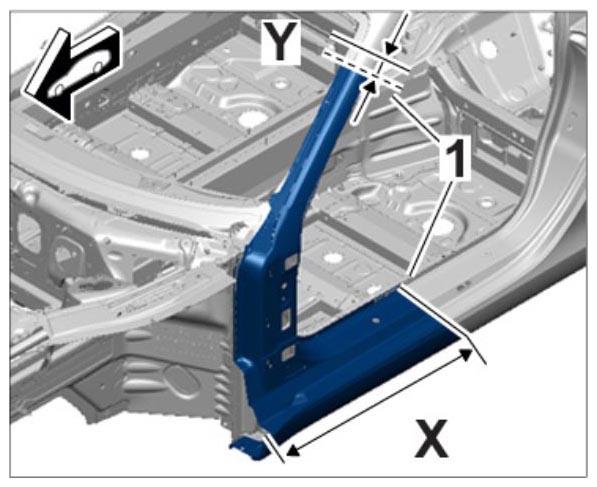

      Mark cuts X & Y  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

      Information

      Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

4. Mark and make cuts. → Distance: 150 mm → Distance: 700 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

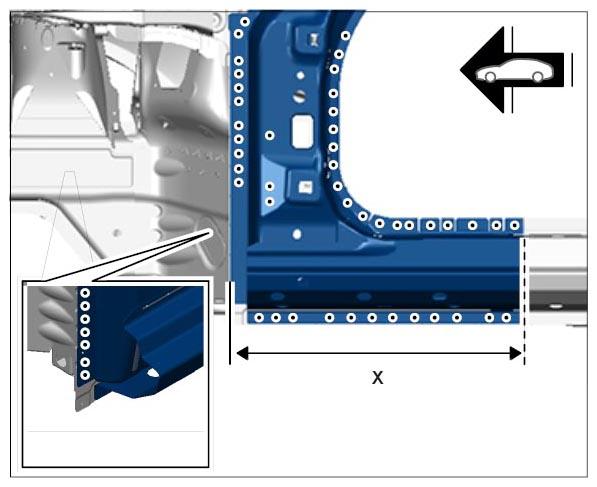

5. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Drill out spotwelds using spotweld drill  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Heat bonding areas.
   1. 7.1. Remove A-pillar.
