Preparing A-Pillar

  1. Fit in new part and secure it to the body. Check gap dimensions. → WM 5X00IN GAP DIMENSIONS (EXCEPT CARRERA "EDITION", CARRERA CABRIOLET "EDITION", CARRERA 4 "EDITION", TARGA 4, TARGA 4S, TARGA 4 GTS, CARRERA 4 CABRIOLET "EDITION") .

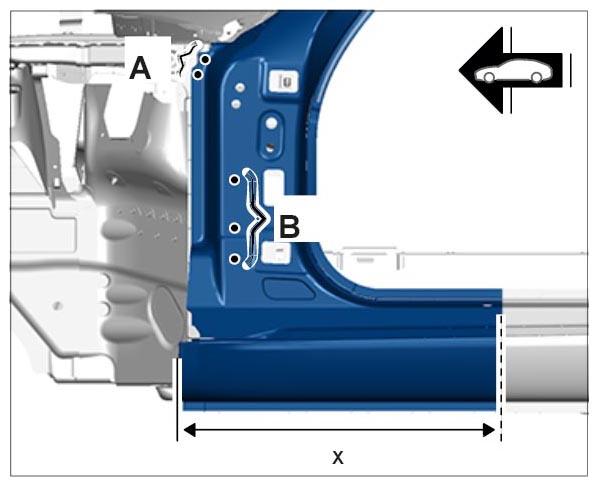

    1. 1.1. Cut new part.
    2. 1.2. Make cut through the A-pillar and body in the overlap area.
    3. 1.3. Drill holes for rivets in area -A-  . → Diameter: 6.6 mm
    4. 1.4. Drill holes for plug welding using inert gas in area -B-  . → Diameter: 8.0 mm
      G09993427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

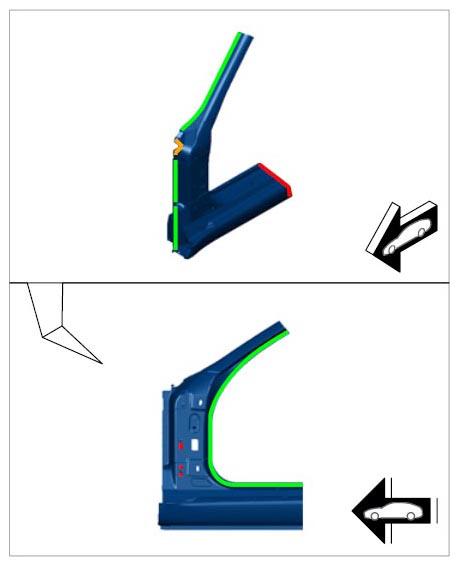

  2. Prepare the marked connection areas for bonding and welding.
    G09993428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

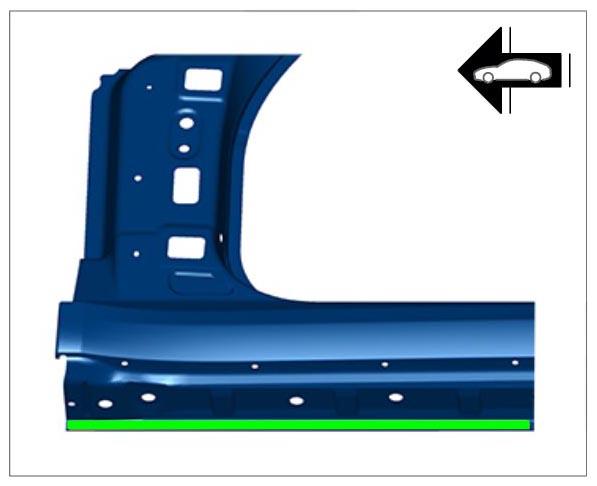

    G09993429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Bonding + resistance spot-welding
    Yellow Bonding + riveting
